View larger
Images are for illustrative purposes only. Please refer to data sheet for details

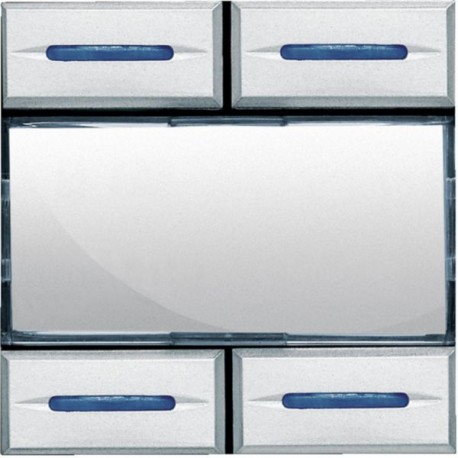

HC4680 BTCINO AX COMMAND THE STAGE "CLEAR"
HC4680
HC4680
BTICINO
1 Pcs.
AX COMMAND THE STAGE "CLEAR"
AX COMMAND SCENARIO "CLEAR"
Control of 4 scenes Axolute MyHOME - tech
Automation > Touch sensor for bus system
DOMOTICS MY HOME
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Controls 4 scenes - Checks of scenes customizable to schedule or activate 4 different environments by unifying actions of the automation system lights/blinds, temperature management and/or diffusion of sound - The scenes are recorded in a module of the scene ref. F420 - 2 modules Version Axolute - complete with a plate and a bracket - TechGeneral characteristics
MyHOME home automation - BUS - automation - controls| Feature Name | Feature Value |
|---|---|
| With LED indication (EF005950) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Material (EF002169) | Plastic |
| Bus system LON (EF003831) | No |
| Surface finishing (EF006569) | Glossy |
| Mounting method (EF000003) | Flush mounted |
| Bus system KNX (EF001499) | No |
| With room temperature controller (EF001136) | No |
| Material quality (EF001257) | Thermoplastic |
| Transparent (EF006243) | No |
| Number of actuation points (EF007592) | 4 |
| Min. depth of built-in installation box (EF012278) | 55 mm |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | No |
| With IR sensor (EF000535) | No |
| Surface protection (EF000139) | Untreated |
| With display (EF000458) | No |
| With bus connection (EF001504) | Yes |
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Number of buttons (EF003144) | 4 |
| RAL-number (similar) (EF003882) | 9006 |
| With label area (EF005040) | Yes |
| Radio frequency bidirectional (EF009466) | No |
| Colour (EF000007) | Silver |
| Other bus systems (EF003811) | Other |
| With anti-theft/dismantling protection (EF003837) | No |
