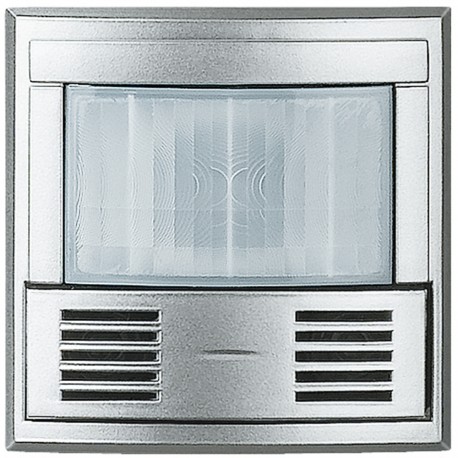

BTICINO HC4433 HC4433 BTCINO AX-IR SENSOR+US 2.5 TO 2M TECH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC4433 BTCINO AX-IR SENSOR+US 2.5 TO 2M TECH

HC4433

HC4433

BTICINO

1 Pcs.

AX-IR SENSOR+US 2.5 TO 2M TECH AX-IR+US 2.5A 2M TECH SENSOR Detector 3-wire with neutral Axolute - 2 modules - Tech 3-wire detector with neutral Axolute - 2mod - Tech

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The HC4433 BTCINO AX-IR SENSOR+US 2.5 TO 2M TECH by Bticino is a presence detector built to monitor area occupancy for advanced building automation. Presence detectors of this class are routinely used in office environments to ensure lighting and environmental controls remain active while personnel are present. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch (EF001099): No
  • Staircase light controller (EF001098): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Min. switch-on time (EF006589): 5 s
  • Compatible with Apple HomeKit (EF014925): No
  • Detection angle horizontal (EF006582): 180 °
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Networkable (EF003904): No
  • Animal zone (EF006311): No
  • Model (EF000010): Presence detector
  • With alarm function (EF005624): No
  • Optimum mounting height (EF008011): 1.2 m
  • Anti-bacterial treatment (EF023790): No
  • With acoustic sensor (EF017675): No

More info

▲

Product features

Presence Detector with neutral - Dual tech Infrared and Ultrasound, which allows a detection of presence accurate - Check the natural luminosity continuously and not only at the time of detection - Powers that are supported according to the type of lamp: - Led : 0 to 250 W - Fluocompactas : 0 to 250 W - LEDs, CFLs, Halogens, tube fluo transformer with ferromagnetic or electronic: 0 to 1000 VA - Halogen 230 V, incandescent : 0 to 2000 W - Possibility of installing up to 10 detectors in parallel - Possibility of manual control with additional thanks to the push-button built-in - Timing adjustable from 5 s to 30 min - Brightness adjustable 5 lux to 1275 lux - Consumption in standby: 0.4 W - Power supply 230 Vac - 3-wire - 2 modules - Tech

General characteristics

Axolute - detectors
