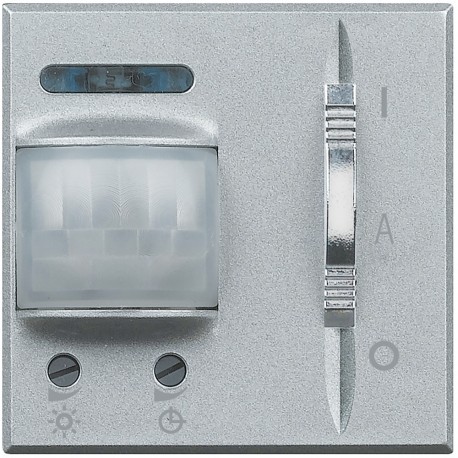

BTICINO HC4432 HC4432 BTCINO AX-IR SENSOR 6A 2M TECH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC4432 BTCINO AX-IR SENSOR 6A 2M TECH

HC4432

HC4432

BTICINO

1 Pcs.

AX-IR SENSOR 6A 2M TECH AX-SENSOR IR 6A 2M TECH Detector 3-wire with neutral exclusion Axolute - 2 modules - Tech 3-wire detector with neutral exclusion Axolute - 2mod - Tech

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino ax-ir sensor 6a 2m tech (part number HC4432) is a movement sensor designed to control electrical circuits based on thermal motion detection in indoor zones. Infrared motion sensors are essential for creating energy-efficient lighting networks in modern real estate.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch (EF001099): No
  • Staircase light controller (EF001098): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Min. switch-on time (EF006589): 30 s
  • Compatible with Apple HomeKit (EF014925): No
  • Detection angle horizontal (EF006582): 105 °
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Networkable (EF003904): No
  • Animal zone (EF006311): No
  • Model (EF000010): Movement sensor
  • With alarm function (EF005624): No
  • Optimum mounting height (EF008011): 1.2 m
  • Anti-bacterial treatment (EF023790): No
  • With acoustic sensor (EF017675): No

More info

▲

Product features

Detector 3-wire, with neutral, to the exclusion of - Power type of lamps: - Halogen 230 V, incandescent : 0 to 1200 W - Halogen with transformer ferromagnetic: 0 to 1200 VA - Tubes fluo : 0 to 450 VA - Possibility of forcing the detector in mode ON, Automatic or OFF by the cursor 3 positions - additional option of controlling manually by push button - Timer 30 s to 10 min. - Brightness threshold from 5 lux to 2000 lux - detection Angle 105° - detection Distance 6 m - Power supply 230 Vac - 3-wire - 2 modules - Tech

General characteristics

Axolute - detectors
