HC4285C1 BTCINO AX-BASE USB 1.1 A/5V 1M TECH
HC4285C1
HC4285C1
BTICINO
1 Pcs.
Automation > USB power supply
AXOLUTE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

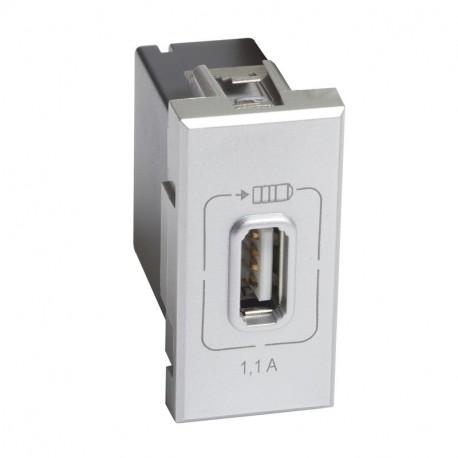

Designed as a Bticino HC4285C1 USB charging insert, this flush-mounted module integrates into standard wall frameworks to supply low-voltage power. Units of this class are routinely used to upgrade facility electrical systems with direct device charging capabilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Flush mounted
- Suitable for degree of protection (IP) (EF006755): IP40
- Connection type (EF000124): Screwed terminal
- Operating voltage (EF003983): 100 V
- Device depth (EF008810): 41 mm
- Impact strength (EF004293): IK04
- Anti-bacterial treatment (EF023790): No
- Number of ports USB-C (EF017049): 0
- Min. depth of built-in installation box (EF012278): 40 mm
- Output voltage (EF003933): 5 V
- Power consumption (EF000346): 0.066 W
- Device width (EF008808): 22.3 mm
- Device height (EF008809): 45 mm
- Colour (EF000007): White
- Number of ports USB-A (EF000997): 1
- RAL-number (EF000116): 7035
