View larger
Images are for illustrative purposes only. Please refer to data sheet for details

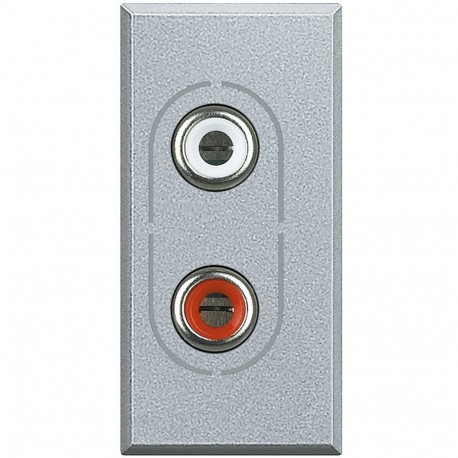

HC4281 BTCINO AX-BASED AUDIO RCAx2 1M TECH
HC4281
HC4281
BTICINO
1 Pcs.
AX-BASED AUDIO RCAx2 1M TECH
Base audio RCA x 2 - Axolute - 1 module - Tech
Automation > Insert/cover for communication technology
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Bases audio RCA x 2 - 1 module - TechGeneral characteristics
Axolute - Databases-Audio/Video - Mechanisms provided without support - To combine with the brackets and plates trim| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Shielded buses (EF002444) | No |
| Surface finishing (EF006569) | Matt |
| Shielded housing (EF002445) | No |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | No |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| Luster terminal (EF003868) | No |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| Utilization (EF000133) | RCA / phono |
| Suitable for degree of protection (IP) (EF006755) | IP21 |
| Device depth (EF008810) | 35.85 mm |
| With buses/couplings (EF005043) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Imprintable label (EF001519) | Without indication field |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Aluminium |
| Suitable for number of connectors (EF001579) | 2 |
