View larger
Images are for illustrative purposes only. Please refer to data sheet for details
H4651 BTCINO AX Reader cards, and indicator
H4651
H4651
BTICINO
1 Pcs.
AX Reader cards, and indicator
AX CARD READER AND INDICATOR

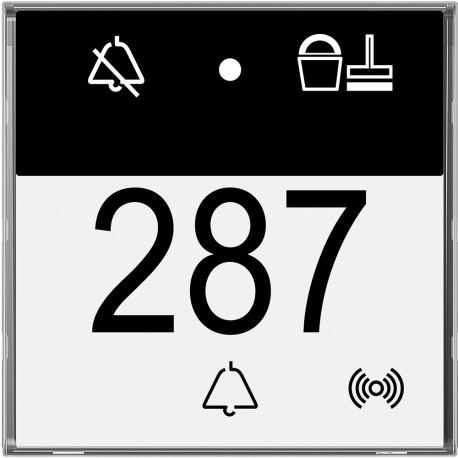

Indicator exterior to hotel with RFID reader Axolute MyHOME
Outdoor hotel indicator with RFID reader Axolute MyHOME
Automation > Touch sensor for bus system
HOTEL SOLUTIONS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Indicators, outdoor with proximity reader RFID - Device located on the outside of the room - Indicated by LED backlighting the symbols "CLEAN THE ROOM" or "do NOT DISTURB" - Includes a marking to indicate the n.No. of the room - Connection to BUS - Power supply 27 V= - can Be used as a push-to-bell in association with the alarm module supplementary ref. 34912/13/14 or ref. 346982/83/84 - it Has an integrated proximity reader - Allows the control of an actuator specific to the opening of the door Version Axolute - complete with a plate Axolute and a supportGeneral characteristics
MyHOME home automation - BUS - products hotels| Feature Name | Feature Value |
|---|---|
| With LED indication (EF005950) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Material (EF002169) | Plastic |
| Bus system LON (EF003831) | No |
| Surface finishing (EF006569) | Glossy |
| Mounting method (EF000003) | Flush mounted |
| Bus system KNX (EF001499) | No |
| With room temperature controller (EF001136) | No |
| Material quality (EF001257) | Thermoplastic |
| Transparent (EF006243) | Yes |
| Number of actuation points (EF007592) | 1 |
| Min. depth of built-in installation box (EF012278) | 55 mm |
| Bus system Powernet (EF001501) | No |
| Bus system radio frequency (EF001500) | No |
| With IR sensor (EF000535) | No |
| Surface protection (EF000139) | Untreated |
| With display (EF000458) | No |
| With bus connection (EF001504) | Yes |
| Bus system KNX-RF (Radio Frequency) (EF008855) | No |
| Number of buttons (EF003144) | 1 |
| RAL-number (similar) (EF003882) | 9011 |
| With label area (EF005040) | Yes |
| Radio frequency bidirectional (EF009466) | Yes |
| Colour (EF000007) | Other |
| Other bus systems (EF003811) | Other |
| With anti-theft/dismantling protection (EF003837) | No |
