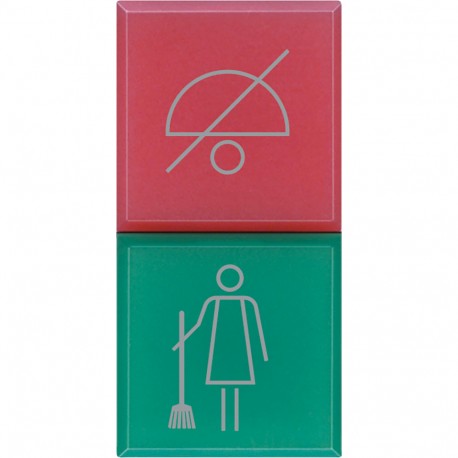

BTICINO H4372V230H H4372V230H BTCINO AX-DIFFUSE RED+GREEN HOTEL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H4372V230H BTCINO AX-DIFFUSE RED+GREEN HOTEL

H4372V230H

H4372V230H

BTICINO

10 Pcs.

AX-DIFFUSE RED+GREEN HOTEL AX-DIFFUSE RED+HOTEL GREEN Diffuser LED for hotel Axolute - 1 module - Red/Green Axolute LED Diffuser for Hotel - 1mod - Red/Green

Automation > Information light signal for domestic switching devices
AXOLUTE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Bticino H4372V230H is an AX-diffuse red+green hotel unit designed to provide dual-color visual status indication for hospitality control requirements. Such multi-state indicators are typically integrated into switchboards or bedside panels to display operational status clearly.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Max. lamp power (EF000260): 0.5 W
  • Material (EF002169): Plastic
  • Surface finishing (EF006569): Matt
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • Nominal voltage (EF000002): 230 V
  • Transparent (EF006243): No
  • Surface protection (EF000139): Untreated
  • With light source (EF005905): Yes
  • With fixed symbol/imprint (EF007949): Yes
  • With flashlight (EF006575): No
  • Suitable for degree of protection (IP) (EF006755): IP2X
  • Device depth (EF008810): 40 mm
  • Device width (EF008808): 22 mm
  • Assembly arrangement (EF000005): Basic unit with central cover plate
  • Application as button (EF003912): No

More info

▲

Product features

Signaling Diffusers LED - 230 Vac - Lamps 21 mA ? 500 mW - 1 module - Red/Green

General characteristics

Axolute - lighting, buoys, signaling and security
