View larger
Images are for illustrative purposes only. Please refer to data sheet for details

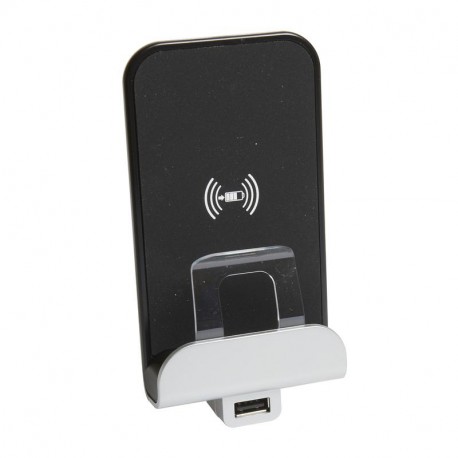

H4285CW2 BTCINO AX-BASE USB 2.4 A/5V+INDUCTION
H4285CW2
H4285CW2
BTICINO
1 Pcs.
AX-BASE USB 2.4 A/5V+INDUCTION
Base for induction Axolute + base USB type A
Axolute Induction Base + USB Type A Base
Automation > USB power supply
AXOLUTE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Allows you to recharge quickly and without the wires of a smartphone equipped with a receiver of the induction - Adapter to headboards and work spaces - in Accordance with the standard WPC QI (Wireless Power Consortium) - Compliant to standard EN - 62479 (emission EMC) - Function anti-theft lock - Equipped with a USB port to 2400 mA type-A to feed a second terminal - 12 W - Possibility of mounting in multi-horizontal - metallic Finish - Dimensions 136,5 x 70 x 56,5 mm - To equip with plate dummyGeneral characteristics
Axolute - USB chargers| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Module frame/grid |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 55 mm |
| Impact strength (EF004293) | Other |
| Anti-bacterial treatment (EF023790) | No |
| Device width (EF008808) | 70 mm |
| Device height (EF008809) | 130 mm |
| Colour (EF000007) | Anthracite |
| RAL-number (EF000116) | 7015 |
| Max. output current (EF001315) | 2400 mA |
| Frequency (EF000416) | 50 Hz |
