> BTICINO > AUTONOMOUS LIGHTING MANAGEMENT > AM5752

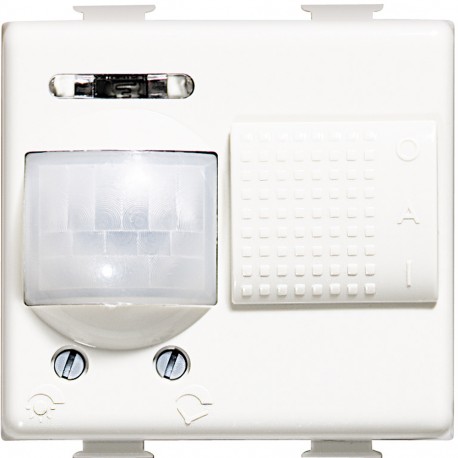

BTICINO AM5752 AM5752 BTCINO MX-IR SENSOR 6A 2M WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AM5752 BTCINO MX-IR SENSOR 6A 2M WHITE

AM5752

AM5752

BTICINO

1 Pcs.

MX-IR SENSOR 6A 2M WHITE MX-SENSOR IR 6A 2M WHITE Detector 3-wire with neutral exclusion Màtix - 2 modules - White 3-wire detector with neutral exclusion Màtix - 2mod - White

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An AM5752 BTCINO MX-IR SENSOR 6A 2M WHITE is an infrared motion sensor engineered to manage connected electrical loads in response to human presence. These components are widely implemented in commercial and residential automation setups to optimize lighting usage.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch: No
  • Staircase light controller: No
  • Material quality: Thermoplastic
  • Mounting method: Flush mounted
  • Min. switch-on time: 30 s
  • Compatible with Apple HomeKit: No
  • Detection angle horizontal: 105 °
  • Compatible with Amazon Alexa: No
  • Compatible with Google Assistant: No
  • Networkable: No
  • Animal zone: No
  • Model: Movement sensor
  • With alarm function: No
  • Optimum mounting height: 1.2 m
  • Anti-bacterial treatment: No
  • With acoustic sensor: No

More info

▲

Product features

Detector 3-wire, with neutral, to the exclusion of - Power type of lamps: - Halogen 230 V, incandescent : 0 to 1200 W - Halogen with transformer ferromagnetic: 0 to 1200 VA - Tubes fluo : 0 to 450 VA - Possibility of forcing the detector in mode ON, Automatic or OFF by the cursor 3 positions - additional option of controlling manually by push button - Timer 30 s to 10 min. - Brightness threshold from 5 lux to 2000 lux - detection Angle 105° - detection Distance 6 m - Power supply 230 Vac - 3-wire - 2 modules - White

General characteristics

Màtix - detectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
