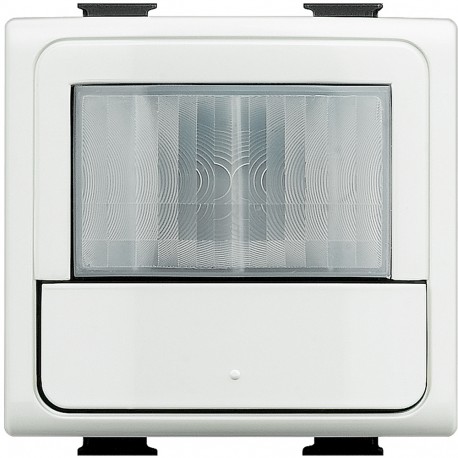

BTICINO AM5434 AM5434 BTCINO MX-SENSOR IR 2.5 TO 2M WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AM5434 BTCINO MX-SENSOR IR 2.5 TO 2M WHITE

AM5434

AM5434

BTICINO

1 Pcs.

MX-SENSOR IR 2.5 TO 2M WHITE Green switch passive infrared + sensor brightness Màtix - 2 modules - White Green passive infrared switch + Màtix brightness sensor - 2mod - White

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for flush installation, the AM5434 BTCINO MX-SENSOR IR 2.5 TO 2M WHITE serves as a dependable movement sensor for automated lighting applications. It detects occupant presence to activate connected circuits seamlessly within commercial spaces.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch: No
  • Staircase light controller: No
  • Material quality: Thermoplastic
  • Mounting method: Flush mounted
  • Min. switch-on time: 5 s
  • Compatible with Apple HomeKit: No
  • Detection angle horizontal: 180 °
  • Compatible with Amazon Alexa: No
  • Compatible with Google Assistant: No
  • Networkable: No
  • Animal zone: No
  • Model: Movement sensor
  • With alarm function: No
  • Optimum mounting height: 1.2 m
  • Anti-bacterial treatment: No
  • With acoustic sensor: No

More info

▲

Product features

Green switch with Infrared technology - Check the natural luminosity continuously and not only at the time of detection - Powers that are supported according to the type of lamp: - Led : 0 to 250 W - Fluocompactas : 0 to 250 W - LEDs, CFLs, Halogens, tube fluo transformer with ferromagnetic or electronic: 0 to 1000 VA - Halogen 230 V, incandescent : 0 to 2000 W - Possibility of installing up to 10 detectors in parallel - Possibility of manual control with additional thanks to the push-button built-in - Timing adjustable from 5 s to 30 min - Brightness adjustable from 5 lux to 1275 lux - Consumption in standby: 0.4 W - Power supply 230 Vac - 3-wire - 2 modules - White

General characteristics

Màtix - detectors
