BTICINO AM5433 AM5433 BTCINO MX-SENSOR IR+US 2.5 TO 2M WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

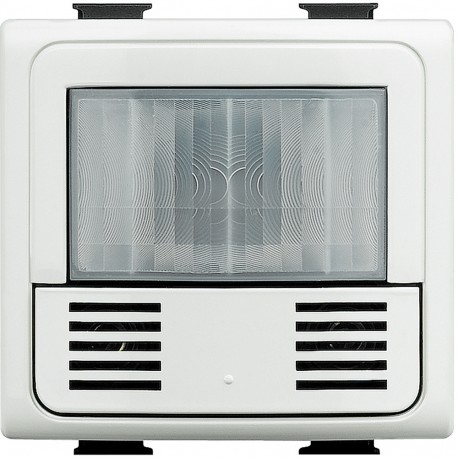

AM5433 BTCINO MX-SENSOR IR+US 2.5 TO 2M WHITE

AM5433

AM5433

BTICINO

1 Pcs.

MX-SENSOR IR+US 2.5 TO 2M WHITE MX-IR+US 2.5A 2M SENSOR BLAN Detector 3-wire with neutral Màtix - 2 modules - White

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product features

Presence Detector with neutral - Dual tech Infrared and Ultrasound, which allows a detection of presence accurate - Check the natural luminosity continuously and not only at the time of detection - Powers that are supported according to the type of lamp: - Led : 0 to 250 W - Fluocompactas : 0 to 250 W - LEDs, CFLs, Halogens, tube fluo transformer with ferromagnetic or electronic: 0 to 1000 VA - Halogen 230 V, incandescent : 0 to 2000 W - Possibility of installing up to 10 detectors in parallel - Possibility of manual control with additional thanks to the push-button built-in - Timing adjustable from 5 s to 30 min - Brightness adjustable from 5 lux to 1275 lux - Consumption in standby: 0.4 W - Power supply 230 Vac - 3-wire - 2 modules - White

General characteristics

Màtix - detectors

ETIM for AM5433 Domestic wiring accessories and controls (EC000133)
Feature Name Feature Value
Bridging switch (EF001099) No
Staircase light controller (EF001098) No
Material quality (EF001257) Thermoplastic
Mounting method (EF000003) Flush mounted
Min. switch-on time (EF006589) 5 s
Compatible with Apple HomeKit (EF014925) No
Detection angle horizontal (EF006582) 180 °
Compatible with Amazon Alexa (EF014927) No
Compatible with Google Assistant (EF014926) No
Networkable (EF003904) No
Animal zone (EF006311) No
Model (EF000010) Presence detector
With alarm function (EF005624) No
Optimum mounting height (EF008011) 1.2 m
Anti-bacterial treatment (EF023790) No
With acoustic sensor (EF017675) No
Background monitoring (EF017674) No
Connection cable length (EF003636) 0 mm
Temperature (EF001731) -5 °C
Substation input (EF003876) No
Colour (EF000007) White
With connection cable (EF005036) No
With signal unit (EF003890) No
Suitable for wireless transmission (EF001198) No
Degree of protection (IP) (EF005474) IP20
Material (EF002169) Plastic
Response value luminosity adjustable (EF007575) Yes
Voltage type (EF000187) AC
Surface finishing (EF006569) Glossy
Halogen free (EF000025) No
Transparent (EF006243) No
Dim function with dimmer basic element (EF003808) No
Max. switching power (EF001503) 2000 W
Forced switch off (EF003920) Yes
Surface protection (EF000139) Other
Diameter reach on floor (EF003843) 3 m
Frequency (EF000416) 50 Hz
Remote operation (EF003848) Yes
Constant light control (EF003863) No
Nominal voltage (EF005127) 230 V
Max. reach sideways (EF001323) 8 m
Max. reach frontally (EF001322) 8 m
IFTTT support available (EF011072) No
Creep-under protection (EF000147) No
Teach-function for response value luminosity (EF003898) No
Response value luminosity (EF003814) 5 lx
HVAC-control (EF003858) No
