View larger
Images are for illustrative purposes only. Please refer to data sheet for details

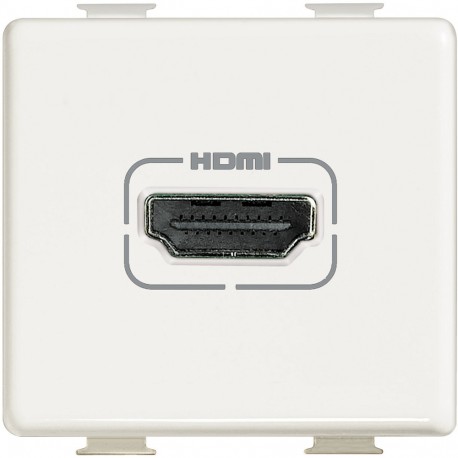

AM4284 BTCINO MX-BASE VIDEO HDMI 2M WHITE
AM4284
AM4284
BTICINO
1 Pcs.
MX-BASE VIDEO HDMI 2M WHITE
MX-BASE HDMI VIDEO 2M WHITE
Base video HDMI - Màtix - 2 modules - White
HDMI Video Base - Medium - 2mod - White
Automation > Insert/cover for communication technology
VARIOUS VDI
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Bases video HDMI - 2 modules - WhiteGeneral characteristics
Màtix - Databases-Audio/Video - Mechanisms provided without support - To combine with the brackets and plates trim| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Shielded buses (EF002444) | No |
| Surface finishing (EF006569) | Matt |
| Shielded housing (EF002445) | No |
| Type of fastening (EF002442) | Engage (snap) |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | Yes |
| Number of modules (module system) (EF009573) | 2 |
| Transparent (EF006243) | No |
| With lighting (EF003829) | No |
| Min. depth of built-in installation box (EF012278) | 16.5 mm |
| Luster terminal (EF003868) | No |
| Surface protection (EF000139) | Untreated |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| RAL-number (similar) (EF003882) | 9003 |
| Utilization (EF000133) | HDMI |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Contact type (EF001587) | Male |
| Device depth (EF008810) | 14.5 mm |
| With buses/couplings (EF005043) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprintable label (EF001519) | Without indication field |
| Isolated connections (EF016888) | No |
| Device width (EF008808) | 47 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 44 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | White |
| Suitable for number of connectors (EF001579) | 1 |
