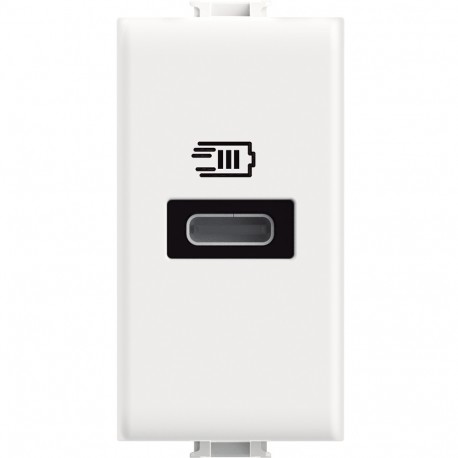

BTICINO AM4192C AM4192C BTCINO MX-BASE USB C 3A/5V 1M BLAN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AM4192C BTCINO MX-BASE USB C 3A/5V 1M BLAN

AM4192C

AM4192C

BTICINO

100 Pcs.

MX-BASE USB C 3A/5V 1M BLAN Màtix Single Charger Base - Type C - White - 1 module

Automation > USB power supply
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a specialized power supply insert, the Bticino AM4192C BTCINO MX-BASE USB C 3A/5V 1M BLAN functions as a USB charger designed for flush mounting within interior wall boxes. These components are implemented across commercial properties to provide direct device charging capabilities without bulky external transformers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.048 W
  • Device width (EF008808): 23.4 mm
  • Device height (EF008809): 43.6 mm
  • Colour (EF000007): White
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 9003

More info

▲

Overview

The USB Type-C charger allows you to charge electronic terminals (mobiles, tablets). The mechanism must be completed with a plate.

description
Universal USB chargers - Compliant with IEC 62684-2011-01 standard - Allow fast charging of mobile phones, tablets, smartphones, MP3, MP4 - Free up space for power bases - Standby consumption0.1 W - Class II TBTS - Complies with the EEC directive on the harmonization of the standard for charging portable terminals and the reduction of mobile chargers - Supplied without cable - 5V - 230V - USB charger 1.5A - Type C - 1 module - White.

specifications

ModelOther
Number of USB-A ports0
Number of USB-C ports1
Operating voltage100-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-12 V
Power consumption0.048 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
ColourWhite
RAL number9003
Device width23.4 mm
Device height43.6 mm
Device Depth41 mm
Min. depth of the recessed box40 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth32.5 mm
Operating Temperature5-40 °C
Storage temperature-20-70 °C
Type of voltageAC
Nominal Voltage100-240 V
Power DeliveryYes
Nominal current0.5-0.5 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
