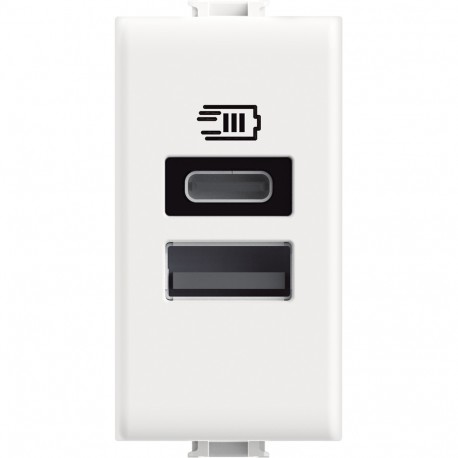

AM4191AC BTCINO MX-BASE USB A+C 3A/5V 1M BLAN
AM4191AC
AM4191AC
BTICINO
1 Pcs.
MX-BASE USB A+C 3A/5V 1M BLAN
Màtix double charger base - Type A+C - 1 module - White
Automation > USB power supply
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
USB A+C Chargers - 3A/5V - 230 Vac - 15W - Allows fast charging of mobile phones, tablets, smartphones, MP3, MP4 - Standby <lt/> consumption 0.1 W - Class II TBTS - Supplied without cable - 1 module - White.
description
Màtix - USB chargers.specifications
| Model | Other |
|---|---|
| Number of USB-A ports | 1 |
| Number of USB-C ports | 1 |
| Operating voltage | 100-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-5 V |
| Power consumption | 0.091 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | White |
| RAL number | 9003 |
| Device width | 23.4 mm |
| Device height | 43.6 mm |
| Device Depth | 41 mm |
| Min. depth of the recessed box | 40 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 32.5 mm |
| Operating Temperature | 5-40 °C |
| Storage temperature | -20-70 °C |
| Type of voltage | AC |
| Nominal Voltage | 100-240 V |
| Power Delivery | No |
| Nominal current | 0.5-0.5 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 41 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 1 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.091 W |
| Device width (EF008808) | 23.4 mm |
| Device height (EF008809) | 43.6 mm |
| Colour (EF000007) | White |
| Number of ports USB-A (EF000997) | 1 |
| RAL-number (EF000116) | 9003 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
