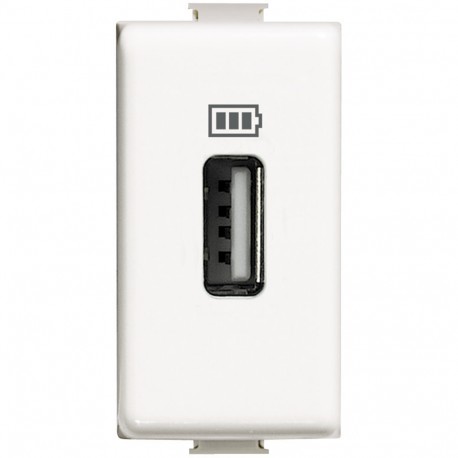

BTICINO A5285C1 A5285C1 BTCINO MX-BASE USB 1.1 A/5V 1M MARF View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A5285C1 BTCINO MX-BASE USB 1.1 A/5V 1M MARF

A5285C1

A5285C1

BTICINO

5 Pcs.

MX-BASE USB 1.1 A/5V 1M MARF Base charger USB (A) Màtix - 1.1 A - 5 V - 230 V - 1 module - Ivory USB Charger Base (A) Portable - TypeA - 1.1A - 5V - 230V - 1mod - Ivory

Automation > USB power supply
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The A5285C1 BTCINO MX-BASE USB 1.1 A/5V 1M MARF is a flush-mounted USB charger manufactured by Bticino to provide direct low-voltage power supply functionality within wall installations. These modules integrate smoothly into electrical wiring configurations to support mobile device charging in residential and commercial spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method: Flush mounted
  • Suitable for degree of protection (IP): IP40
  • Connection type: Screwed terminal
  • Operating voltage: 100 V
  • Device depth: 42.3 mm
  • Impact strength: IK04
  • Anti-bacterial treatment: No
  • Number of ports USB-C: 0
  • Min. depth of built-in installation box: 40 mm
  • Output voltage: 5 V
  • Power consumption: 0.066 W
  • Device width: 23.4 mm
  • Device height: 43.6 mm
  • Colour: White
  • Number of ports USB-A: 1
  • RAL-number: 9001

More info

▲

Product features

Universal chargers USB - Compliant to the standard IEC 62684-2011-01 - Allow the quick charging of mobile phones, tablets, smartphones, MP3, MP4 - Release space for bases of power - Consumption standby < 0.1 W - Class II TBTS - According to the EEC directive on the harmonization of the standard recharging of portable terminals and the reduction of chargers, mobile - Supplied without cable - 5 V - 230 V - Charger, USB 1.1 A - Type A - 1 module -Ivory

General characteristics

Màtix - USB chargers

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
