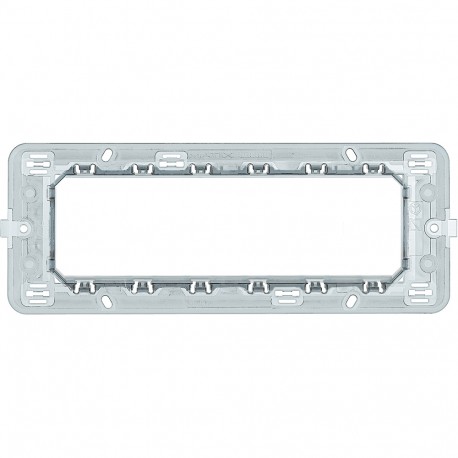

BTICINO 506LSA 506LSA BTCINO MX-SUPPORT TT 6M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

506LSA BTCINO MX-SUPPORT TT 6M

506LSA

506LSA

BTICINO

10 Pcs.

MX-SUPPORT TT 6M Support screws Màtix for plates Magic - 7 modules Support for Magic 6mod power bases

Automation > Holder for modular domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino 506LSA MX-SUPPORT TT 6M is a large-capacity mounting support designed to accommodate six modules of electrical control gear or socket inserts. Frames of this size are typically deployed in multi-gang setups to consolidate control points within a single wall location. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With built-in installation box: Yes
  • With nail: No
  • Material: Plastic
  • Mounting method of the module inserts: Front
  • Material quality: Thermoplastic
  • Suitable for subfloor installation duct box: No
  • Mounting method: Mounting with screw
  • Suitable for mounting in round junction box 60 mm: No
  • With screws: Yes
  • Suitable for mounting on DIN-rail 35 mm: No
  • Suitable for wall duct: No
  • Number of modules vertical (module system): 6
  • Number of modules horizontal (module system): 6
  • Mounting direction: Horizontal and vertical
  • Surface protection: Untreated
  • Flush-mounted installation: No

More info

▲

Product features

Brackets with screws - Support for plates Magic 7 modules

General characteristics

Màtix - brackets
