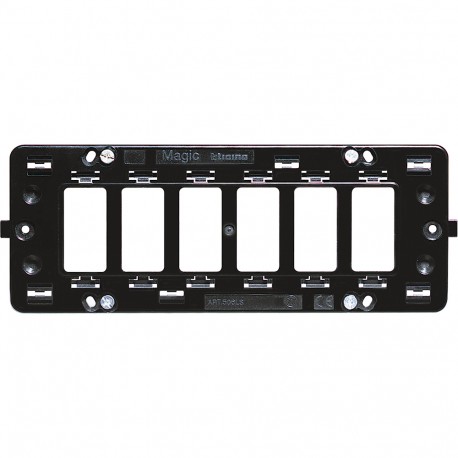

BTICINO 506LS 506LS BTCINO MG-SUPPORT RECTAN 6M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

506LS BTCINO MG-SUPPORT RECTAN 6M

506LS

506LS

BTICINO

50 Pcs.

MG-SUPPORT RECTAN 6M MG-BRACKET RECTAN 6M Support plates Magic 6 modules Support for Magic 6mod mechanisms

Automation > Holder for modular domestic switching devices
MAGIC MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 506LS BTCINO MG-SUPPORT RECTAN 6M functions as a sturdy support frame for grouping multiple control devices and functional modules in a single wall cutout. Technicians rely on these rectangular brackets to keep complex wiring assemblies aligned and secure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With built-in installation box (EF025086): Yes
  • With nail (EF000370): No
  • Material (EF002169): Plastic
  • Mounting method of the module inserts (EF009577): Front
  • Material quality (EF001257): Thermoplastic
  • Suitable for subfloor installation duct box (EF005864): No
  • Mounting method (EF000003): Mounting with screw
  • Suitable for mounting in round junction box 60 mm (EF009579): No
  • With screws (EF005066): Yes
  • Suitable for mounting on DIN-rail 35 mm (EF009580): No
  • Suitable for wall duct (EF006572): No
  • Number of modules vertical (module system) (EF009572): 6
  • Number of modules horizontal (module system) (EF009571): 6
  • Mounting direction (EF003824): Horizontal and vertical
  • Surface protection (EF000139): Untreated
  • Flush-mounted installation (EF007517): No

More info

▲

Product features

Media - Support for plates Magic - 6 modules - Fixing by screws

General characteristics

Magic - media
