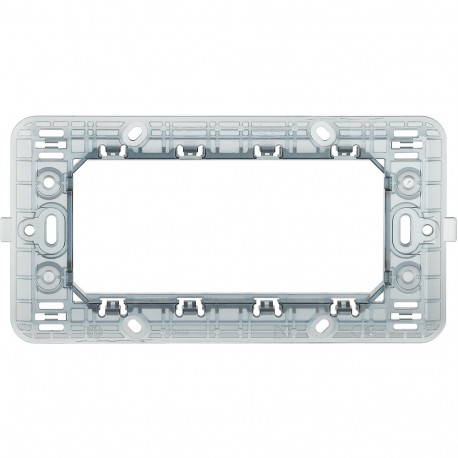

BTICINO 504S 504S BTCINO MG-SUPPORT RECTAN 4M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

504S BTCINO MG-SUPPORT RECTAN 4M

504S

504S

BTICINO

5 Pcs.

MG-SUPPORT RECTAN 4M MG-BRACKET RECTAN 4M Support plates Magic 4 modules Support for Magic 4mod mechanisms

Automation > Holder for modular domestic switching devices
MAGIC MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for larger multi-device assemblies, the 504S BTCINO MG-SUPPORT RECTAN 4M from Bticino serves as a rectangular support frame for four modules. Such mounting structures ensure that switches, dimmers, and outlets remain firmly anchored within wall enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With built-in installation box (EF025086): Yes
  • With nail (EF000370): No
  • Material (EF002169): Plastic
  • Mounting method of the module inserts (EF009577): Front
  • Material quality (EF001257): Thermoplastic
  • Suitable for subfloor installation duct box (EF005864): No
  • Mounting method (EF000003): Mounting with screw
  • Suitable for mounting in round junction box 60 mm (EF009579): No
  • With screws (EF005066): Yes
  • Suitable for mounting on DIN-rail 35 mm (EF009580): No
  • Suitable for wall duct (EF006572): No
  • Number of modules vertical (module system) (EF009572): 4
  • Number of modules horizontal (module system) (EF009571): 4
  • Mounting direction (EF003824): Horizontal and vertical
  • Surface protection (EF000139): Untreated
  • Flush-mounted installation (EF007517): No

More info

▲

Product features

Media - Support for plates Magic - 4 modules - Fixing by screws

General characteristics

Magic - media
