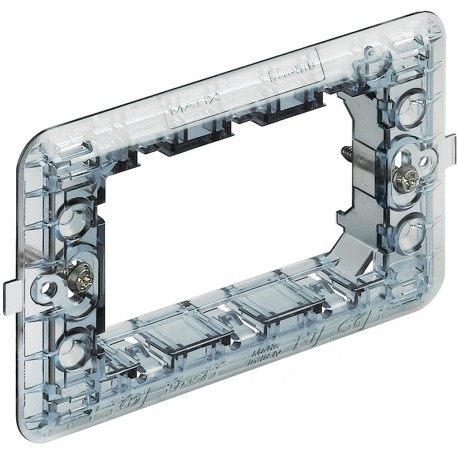

BTICINO 503SA 503SA BTCINO MX-SUPPORT-TT 3M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

503SA BTCINO MX-SUPPORT-TT 3M

503SA

503SA

BTICINO

10 Pcs.

MX-SUPPORT-TT 3M Bracket screws Màtix for plates Magic 3 modules Support for Magic 3mod power bases

Automation > Holder for modular domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to accommodate three-module device combinations, the 503SA BTCINO MX-SUPPORT-TT 3M by Bticino provides a reliable mounting chassis for wall installations. Support frames ensure correct spacing and secure fastening of electrical inserts prior to cover plate attachment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With built-in installation box (EF025086): Yes
  • With nail (EF000370): No
  • Material (EF002169): Plastic
  • Mounting method of the module inserts (EF009577): Front
  • Material quality (EF001257): Thermoplastic
  • Suitable for subfloor installation duct box (EF005864): No
  • Mounting method (EF000003): Mounting with screw
  • Suitable for mounting in round junction box 60 mm (EF009579): No
  • With screws (EF005066): Yes
  • Suitable for mounting on DIN-rail 35 mm (EF009580): No
  • Suitable for wall duct (EF006572): No
  • Number of modules vertical (module system) (EF009572): 3
  • Number of modules horizontal (module system) (EF009571): 3
  • Mounting direction (EF003824): Horizontal and vertical
  • Surface protection (EF000139): Untreated
  • Flush-mounted installation (EF007517): No

More info

▲

Product features

Support screw - Support plates Magic 3 modules

General characteristics

Màtix - brackets
