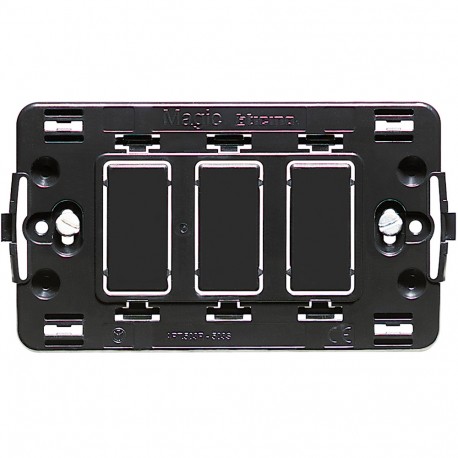

BTICINO 503R 503R BTCINO MG-SUPPORT RECTAN 3M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

503R BTCINO MG-SUPPORT RECTAN 3M

503R

503R

BTICINO

1 Pcs.

MG-SUPPORT RECTAN 3M MG-BRACKET RECTAN 3M Support plates Magic 3 modules Support for Magic 3mod mechanisms

Automation > Holder for modular domestic switching devices
MAGIC MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 503R BTCINO MG-SUPPORT RECTAN 3M from Bticino serves as a rectangular three-module mounting frame designed for flush-mounted electrical accessories. Electricians use this support chassis in wall installations to secure switches, dimmers, and socket inserts into standard rectangular boxes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With built-in installation box (EF025086): Yes
  • With nail (EF000370): No
  • Material (EF002169): Plastic
  • Material quality (EF001257): Urea formaldehyde
  • Suitable for subfloor installation duct box (EF005864): No
  • Mounting method (EF000003): Mounting with claw and screw
  • Suitable for mounting in round junction box 60 mm (EF009579): No
  • With screws (EF005066): Yes
  • Suitable for mounting on DIN-rail 35 mm (EF009580): No
  • Suitable for wall duct (EF006572): No
  • Number of modules vertical (module system) (EF009572): 3
  • Number of modules horizontal (module system) (EF009571): 3
  • Mounting direction (EF003824): Horizontal and vertical
  • Surface protection (EF000139): Untreated
  • Flush-mounted installation (EF007517): No

More info

▲

Product features

Media - Support for plates Magic - 3 modules - Fixing by screws

General characteristics

Magic - media
