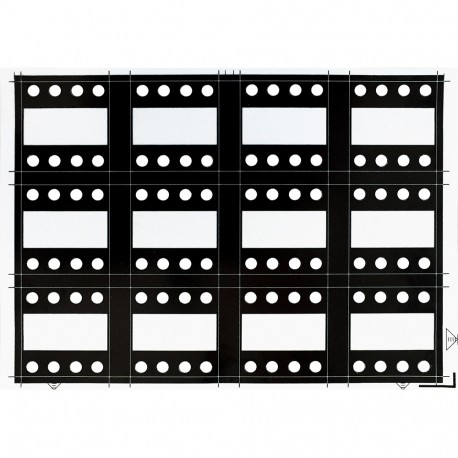

BTICINO 3541 3541 BTCINO Sheet A5 Command setting "BLACK" View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3541 BTCINO Sheet A5 Command setting "BLACK"

3541

3541

BTICINO

1 Pcs.

Sheet A5 Command setting "BLACK" A5 Command Sheet "BLACK" Synergy Grid 1 Way 20AX Single Pole Switch Module White A 5 Blades with Symbols for Customization - Black

Automation > Labelling material for domestic switching devices
DOMOTICS MY HOME

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino 3541 BTCINO Sheet A5 Command setting "BLACK" is an imprintable sheet accessory used to organize and customize command settings for industrial and commercial control gear. Marking accessories help technicians clearly label automation interfaces and panel components during installation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Imprintable sheet
  • Imprint/indication (EF003823): Various symbols
  • Colour (EF000007): Black
  • With tangible imprint (EF009421): No
  • Transparent (EF006243): No
  • Printable with (EF003827): Inkjet

More info

▲
Wiring systemSwitch 1-pole
Method of operationRocker/button
Assembly arrangementBasic element with central cover plate
Push button switchNo
Number of rockers1
Mounting methodFlush-mounted
Type of fasteningOther
With mounting plateNo
MaterialPlastic
Material qualityThermoplastic
Halogen freeYes
Antimicrobial treatmentNo
Surface protectionUntreated
Surface finishingGlossy
ColourWhite
RAL-number (similar)9003
Colour of switch operatorWhite
Label space/information surfaceNo
LightingNo
Function lightingOther
Type of lightingOther
Suitable for degree of protection (IP)IP2X
degree of impact strength (IK)IK01
Nominal voltage250 V
Rated current20 A
Switching current for fluorescent lamps20 AX
Monitoring contactNo
Connection typeScrewed terminal
Device width25.5 mm
Device height57.5 mm
Device depth30 mm
Built-in depth20.5 mm
Min. depth of built-in installation box30 mm
Operating / setting temperature-5-40 °C
Storage temperature-5-40 °C
Voltage typeAC
Frequency50-60 Hz
Cable section4-4 mm²
