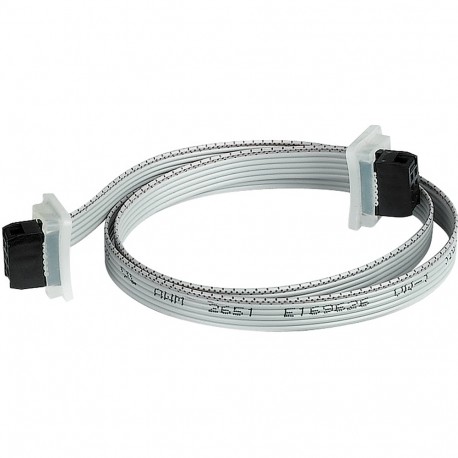

BTICINO 354000 354000 BTCINO BT/2H-EXTENSION CABLE 62CM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

354000 BTCINO BT/2H-EXTENSION CABLE 62CM

354000

354000

BTICINO

1 Pcs.

BT/2H-EXTENSION CABLE 62CM Sfera Modular Entrance Panel Push Button Module Connection Cable 620mm 620mm connection cable for SFERA NEW & ROBUR plates

Cables > Power cable less 1 kV, for moving application
PLATES AND DOOR PHONES EQUIPMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino BT/2H-extension cable (part number 354000 BTCINO BT/2H-EXTENSION CABLE 62CM) functions as an internal wiring harness designed for intercom and building automation systems. Extension cables of this type enable reliable low-voltage signal transmission between indoor panels, distribution blocks, and terminal units.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Cable height approx. (EF003797): 620 mm
  • Cable width approx. (EF003796): 7.6 mm
  • Oil resistant according to EN IEC 60811-404 (EF009770): No
  • Colour outer sheath (EF001618): Grey
  • Low smoke according to EN IEC 61034-2 (EF003799): No
  • Nominal voltage U (EF001615): 50 V
  • Nominal voltage U0 (EF001790): 300 V
  • Number of cores (EF001792): 6
  • Material core insulation (EF000061): Polyvinyl chloride (PVC)
  • Nominal cross section conductor (EF000060): 0.32 mm²
  • Material outer sheath (EF001625): Polyvinyl chloride (PVC)
  • With protective conductor (EF007468): No
  • Conductor category (EF001632): Class 5 = flexible

More info

▲
Nominal cross section conductor0.32 mm²
Conductor categoryClass 5 = flexible
Number of cores6
Material core insulationPolyvinyl chloride (PVC)
Core identificationOther
With protective conductorNo
Material outer sheathPolyvinyl chloride (PVC)
Colour outer sheathGrey
Low smoke according to EN IEC 61034-2No
Oil resistant according to EN IEC 60811-404No
Cable width approximate7.6 mm
Cable height approximate620 mm
Permitted cable outer temperature during assembling/handling-55-105 °C
Nominal voltage U0300 V
Nominal voltage U50 V
