View larger
Images are for illustrative purposes only. Please refer to data sheet for details

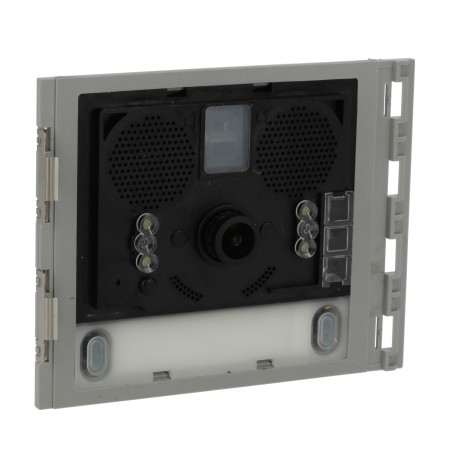

351500 BTCINO BT/2H NEW A/V MODULE SFERA
351500
351500
BTICINO
1 Pcs.
BT/2H NEW A/V MODULE SFERA
Audio/video module with HQ color camera for 2-wire systems for SFERA NEW & ROBUR boards
2-wire audio/video module for SFERA NEW & ROBUR boards
Automation > Push button panel door communication
PLATES AND DOOR PHONES EQUIPMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Sfera audio-video module with HQ camera for the creation of 2-WIRE video systems. Equipped with a 5 MPx wide-angle HQ color camera with digital filters and white LEDs for illumination of the shooting field. The HQ digital video signal is transmitted to the video doorbells using PAL encoding in 2-wire SCS BUS technology. Speaker and microphone volume settings. Handles up to a maximum of 98 pushbutton calls, using additional pushbutton modules in two columns. horizontal viewing angle (119°), vertical viewing angle (92°). Allows the activation of an electric lock connected directly to the S+ and S- terminals (18V 4 A impulsive - maintenance 250mA at 30 Ohm max) and the connection of a local door opener button to the PL terminals. Prepared for additional power. Equipped with front LEDs to indicate the operating status: door opener, active communication, call forwarded and system busy. Integrated optical sensor to turn on the backlight at night. To be completed with a finishing faceplate. The device must be configured physically or by PC and specific software.
| Number of Ring/Ring Buttons | 2 |
|---|---|
| Bell buttons material | Plastic |
| Front material | Other |
| Front Panel Height | 91 mm |
| Faceplate width | 115 mm |
| Installation Depth | 20 mm |
| Type of mounting | Recessed mounted (plaster) |
| Installation technology | Bus System |
| Colour | Other |
| Protection Class (IP) | IP54 |
| Impact resistance | IK07 |
| Operating Temperature | -25-70 °C |
| Storage temperature | -25-70 °C |
| Type of voltage | AC/DC |
| Nominal Voltage | 20-27 V |
| Nominal current | 0.0125-0.165 A |
| Sound Level | 80 dB |
| Standby consumption | 20 mA |
| Halogen-free | Yes |
| Connection Cable Type | Flexible |
| Core cross-section | 1-2.5 mm² |
|---|---|
| Label Space/Print Area | Yes |
| Equipped with waterproof plate protection | Yes |
| With signal lamp | No |
| Control Mode | Wired |
| Contains battery and/or accumulator | No |
| Hands-free | Yes |
| Volume control | Yes |
| Addressable | No |
| Doorman with mobile app | Yes |
| Remote opening of the electric gate/door opener | No |
| Camera Type | Adjustable |
| Camera viewing angle | 151 ° |
| Maximum distance between hob and indoor unit | 200 m |
| Communication Classification Type | Other |
| IEC Designation | Not applicable |
| Battery or accumulator (Pack1) | Not applicable |
| Item Composition (Pack1) | Not applicable |
| Connected Object | No |
| Feature Name | Feature Value |
|---|---|
| Material call buttons (EF002760) | Plastic |
| Number of call buttons (EF001472) | 2 |
| Degree of protection (IP) (EF005474) | IP54 |
| Front plate width (EF004689) | 115 mm |
| Installation technique (EF001474) | Bus system |
| Mounting method (EF000003) | Flush mounted |
| Front plate height (EF004690) | 91 mm |
| Impact strength (EF004293) | IK07 |
| Material front (EF021008) | Other |
| Colour (EF000007) | Other |
| Built-in depth (EF000218) | 20 mm |
