351300 BTCINO BT/2H-MÓD.A/V G. OPENING
351300
351300
BTICINO
1 Pcs.
Automation > Push button panel door communication
PLATES AND DOOR PHONES EQUIPMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

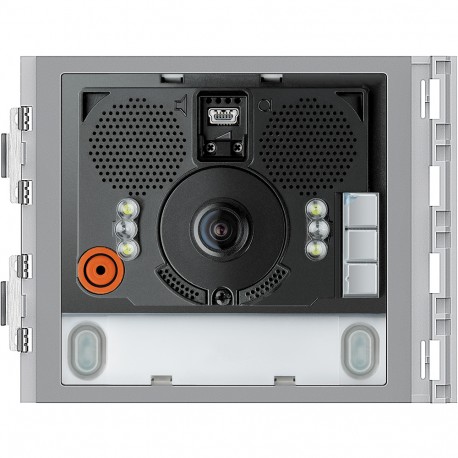

Built as a Bticino BTCINO BT/2H-MÓD.A/V G. OPENING unit, part number 351300, this component operates as an audio-visual intercom module for entrance control architectures. Door communication modules capture audio and video data at building thresholds, interfacing with internal monitors to support secure visitor verification.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Material call buttons (EF002760): Plastic
- Number of call buttons (EF001472): 2
- Degree of protection (IP) (EF005474): IP54
- Front plate width (EF004689): 115 mm
- Installation technique (EF001474): Bus system
- Mounting method (EF000003): Flush mounted
- Front plate height (EF004690): 91 mm
- Impact strength (EF004293): IK07
- Built-in depth (EF000218): 20 mm
More info
▲| Number of call buttons | 2 |
|---|---|
| Material call buttons | Plastic |
| Material front | Other |
| Front plate height | 91 mm |
| Front plate width | 115 mm |
| Built-in depth | 20 mm |
| Mounting method | Flush-mounted |
| Installation technique | Bus system |
| Colour | Other |
| Degree of protection (IP) | IP54 |
| degree of impact strength (IK) | IK07 |
| Operating / setting temperature | -15-50 °C |
| Storage temperature | -20-70 °C |
| Voltage type | AC/DC |
| Nominal voltage | 18-27 V |
| Supply current | 0.04-1 A |
| Frequency | 50-60 Hz |
| Sound level | 80 dB |
| Standby consumption | 40 mA |
| Halogen free | Yes |
| Cable nature for connection | Flexible |
|---|---|
| Cable section | 1-2.5 mm² |
| Label space/information surface | Yes |
| Fitted with rainproof plate protection | Yes |
| With complemantary luminous signal | No |
| Control mode | Wired |
| Contains Batteries and/or Accumulator | No |
| Hands free | Yes |
| Loudness setting | Yes |
| Addressable | No |
| Door entry system with mobile application | Yes |
| Remote opening of gate / Electric door opener | Yes |
| Camera type | Adjustable |
| Video recorder angle | 100 ° |
| Max distance between internal and external unit | 150 m |
| Communication rank type | Other |
| IEC code (Pack1) | Not applicable |
| Battery ou Accumulator (Pack1) | Not applicable |
| Element Composition (Pack1) | Not applicable |
| Connected object | No |
