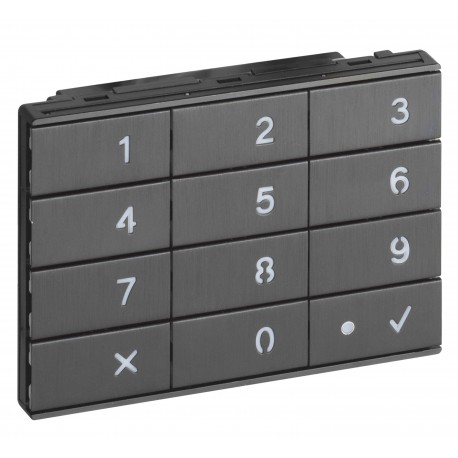

345510 BTCINO BT-L5000 NI KEYBOARD MODULE
345510
345510
BTICINO
1 Pcs.
BT-L5000 NI KEYBOARD MODULE
Additional keyboard module for the L5000 plate in nickel
L5000 Additional Keyboard Module in Nickel
Automation > Functional module for door communication
VIDEO INTERCOM CONNECTED
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Bticino 345510 BTCINO BT-L5000 NI KEYBOARD MODULE acts as an input interface with an integrated keypad for bus-based access control systems. These modules allow users to enter PIN codes or execute directory calls at secure entry points.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 91 mm
- Hearing aid compatible (EF004782): No
- Type of voltage (input voltage) (EF003033): DC
- Number of call buttons (EF001472): 12
- Housing material (EF001596): Plastic
- Contains keypad (EF007158): Yes
- Installation technique (EF001474): Bus system
- Reading strategy code (EF016238): Yes
- Reading strategy biometric (EF016237): No
- Surface mounting (EF003681): Yes
- Model (EF000010): Push button
- Suitable for outdoor installation (EF011885): Yes
- With housing (EF001102): No
- Operating voltage (EF003983): 18 V
- Suitable for indoor installation (EF011884): Yes
- With day/night function (EF021124): No
More info
▲
Keypad module with nickel-finished buttons for opening locks in 2-wire systems in which at least one Linea 5000 (345000) display module is present. The keypad module is equipped with relays with contacts (C - NA - NC) and terminals (CP - P1) to connect a local door opening button, it is programmable from the Home + Project App. It has a button to reset the programming and LEDs to visually indicate the status of the access and the night backlight. The device, when completed with a specific frame, can be used standalone or combined with a display module in a 3+1 composition. Installable in recessed box for 1 module 375601 with surface box for outdoor installation 345311 or with special 345341 accessory with a 3+1 composition.
| Model | Push button |
|---|---|
| Biometric Reading Process | No |
| Reading method code | Yes |
| Installation technology | Bus System |
| Flush mounting | Yes |
| Surface mounting | Yes |
| With housing | No |
| Suitable for outdoor applications | Yes |
| Suitable for indoor applications | Yes |
| Room Temperature (Min-Max) | -25-70 °C |
| Width | 124 mm |
| Height | 91 mm |
| Depth | 35 mm |
| Current Type (Input) | CC |
| Operating voltage (Min-Max) | 18-27 V |
| Housing material | Plastic |
| Number of Ring/Ring Buttons | 12 |
| Contains keyboard | Yes |
| With day/night function | No |
| Compatible with hearing aids | No |
|---|---|
| Colour | Black |
| Installation Depth | 23 mm |
| Impact resistance | IK08 |
| Protection Class (IP) | IP65 |
| Storage Temperature (Min-Max) | -25-70 °C |
| Halogen-free | Yes |
| Label Space/Print Area | No |
| Connected Object | No |
| Method of operation | SCS, Bluetooth |
| App download platform | Google Play Store, App Store |
| With voice command | No |
| Programmable | Yes |
| Connection Protocol Interoperability | No |
| Possibility of connection via Internet box | No |
| App Name | Home + Project , Home + Security |
| Product usage function | Automatic intercoms |
| Programming medium | Apps |
