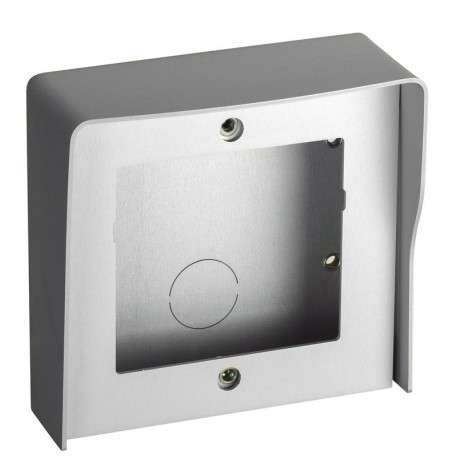

BTICINO 345311 345311 BTCINO BT-L5000 SUP BOX 1 MOD AL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

345311 BTCINO BT-L5000 SUP BOX 1 MOD AL

345311

345311

BTICINO

1 Pcs.

BT-L5000 SUP BOX 1 MOD AL Surface box with rain visor 1 module aluminum L5000 Surface box 1 module aluminum L5000

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
VIDEO INTERCOM CONNECTED

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino 345311 support box is a robust mounting chassis engineered to securely house electrical mechanisms within structured wiring architectures. Such hardware components are commonly installed in commercial and industrial settings to provide a stable foundation for wall-mounted control interfaces and connection points.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for outdoor set-up (EF005774): Yes
  • Height (EF000040): 152 mm
  • Material (EF002169): Aluminium
  • Surface finishing (EF006569): Galvanised
  • Suitable for bottom planking (EF009585): No
  • Suitable for roof planking (EF009584): Yes
  • With de-aeration (EF001161): No
  • Depth (EF000049): 80 mm
  • Colour (EF000007): Aluminium
  • With cable entry (EF000325): Yes
  • Width (EF000008): 146 mm

More info

▲
Surface box with integrated rain visor for 1 module of the L5000 family, finished in aluminium
Suitable for roof claddingYes
Suitable for floor coveringNo
Width146 mm
Height152 mm
Depth80 mm
Materialaluminium
Surface FinishGalvanized
Colouraluminium
VentilatedNo
With cable entryYes
Impact resistanceNot applicable
Operating Temperature (Min-Max)-25-70 °C
Storage Temperature (Min-Max)-25-70 °C
Halogen-freeYes
Equipped with waterproof plate protectionYes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
