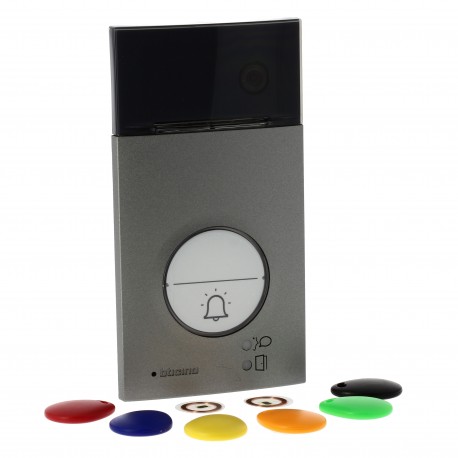

BTICINO 343091 343091 BTCINO BT/2H/L3000-BOARD A/V RFID View larger
Images are for illustrative purposes only. Please refer to data sheet for details

343091 BTCINO BT/2H/L3000-BOARD A/V RFID

343091

343091

BTICINO

1 Pcs.

BT/2H/L3000-BOARD A/V RFID BT/2H/L3000-RFID A/V BOARD Plate audio/video, RFID 2-wire Line 3000 RFID audio/video plate 2 wires LINE 3000

Automation > Push button panel door communication
VIDEO DOOR PHONES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A board a/v rfid offered by Bticino (part number 343091) serves as an integrated video entry board equipped with built-in proximity badge reading functionality. These multi-function modules handle visitor video calling alongside secure keyless entry for authorized personnel.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material call buttons (EF002760): Plastic
  • Number of call buttons (EF001472): 2
  • Degree of protection (IP) (EF005474): IP54
  • Front plate width (EF004689): 100 mm
  • Installation technique (EF001474): Bus system
  • Mounting method (EF000003): Surface mounted
  • Front plate height (EF004690): 190 mm
  • Impact strength (EF004293): IK10
  • Material front (EF021008): Aluminium
  • Colour (EF000007): Silver
  • Built-in depth (EF000218): 26.65 mm

More info

▲

Product features

Video board surface of the push-buttons of the LINE 3000 in zámak, IP54, IK10, camera wide angle, proximity reader prepared for 1 or 2 calls.

General characteristics

Plate video Monoblock Line 3000
