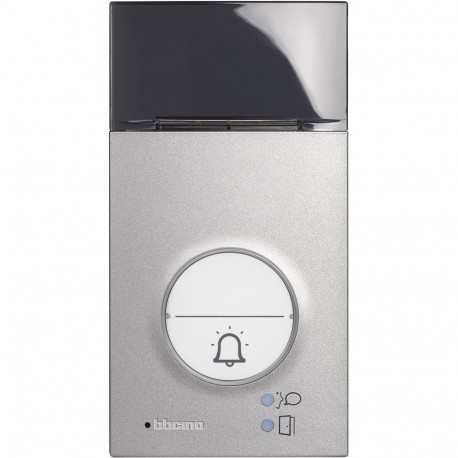

BTICINO 343071 343071 BTCINO BT/2H/L3000-BOARD AUDIO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

343071 BTCINO BT/2H/L3000-BOARD AUDIO

343071

343071

BTICINO

1 Pcs.

BT/2H/L3000-BOARD AUDIO BT/2H/L3000-AUDIO BOARD Linea 3000 2 Wire Audio Push Button Entrance Panel 2-wire audio board LINE 3000

Automation > Push button panel door communication
VIDEO DOOR PHONES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A board audio created by Bticino (part number 343071) serves as an exterior audio communication panel for door entry systems, routing visitor calls to indoor stations. Audio entrance boards ensure crisp voice exchange at residential and commercial access points.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of call buttons (EF001472): 2
  • Degree of protection (IP) (EF005474): IP54
  • Front plate width (EF004689): 100 mm
  • Installation technique (EF001474): Bus system
  • Mounting method (EF000003): Surface mounted
  • Front plate height (EF004690): 190 mm
  • Impact strength (EF004293): IK07
  • Colour (EF000007): Silver
  • Built-in depth (EF000218): 26.65 mm

More info

▲
Number of call buttons2
Material call buttonsOther
Material frontOther
Front plate height190 mm
Front plate width100 mm
Built-in depth26.65 mm
Mounting methodSurface mounted
Installation techniqueBus system
ColourSilver
Degree of protection (IP)IP54
degree of impact strength (IK)IK07
Operating / setting temperature-15-50 °C
Storage temperature-20-70 °C
Voltage typeAC/DC
Nominal voltage18-240 V
Supply current0.04-1 A
Frequency50-60 Hz
Sound level80 dB
Standby consumption40 mA
Halogen freeYes
Cable nature for connectionFlexible
Cable section1-2.5 mm²
Label space/information surfaceYes
Fitted with rainproof plate protectionYes
With complemantary luminous signalNo
Vertical fixing center distance1600-1650 mm
Horizontal fixing center distance30-50 mm
Control modeWired
Contains Batteries and/or AccumulatorNo
Hands freeYes
Loudness settingYes
AddressableNo
Door entry system with mobile applicationYes
Remote opening of gate / Electric door openerNo
Camera typeAdjustable
Video recorder angle100 °
Max distance between internal and external unit150 m
Communication rank typeOther
IEC code (Pack1)Not applicable
Battery ou Accumulator (Pack1)Not applicable
Element Composition (Pack1)Not applicable
Connected objectNo
