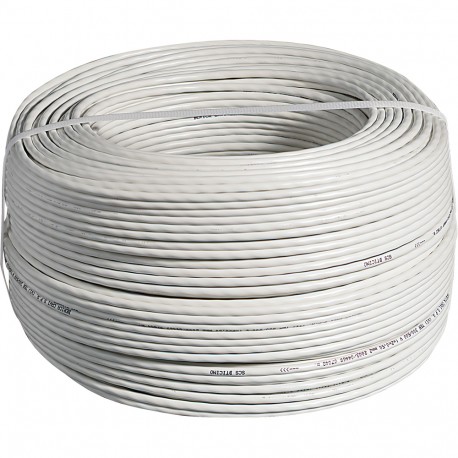

BTICINO 336904 336904 BTCINO BT/2H-BUS CABLE 0,5MM2 200M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

336904 BTCINO BT/2H-BUS CABLE 0,5MM2 200M

336904

336904

BTICINO

1 Pcs.

BT/2H-BUS CABLE 0,5MM2 200M BT/2H-CABLE BUS 0.5MM2 200M Bticino BUS 2 Conductor Cable (200m Coil) 2 wire cable scs white roll 200 meters

Cables > Power cable less 1 kV, for permanent installation
VIDEO DOOR PHONES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Bticino 336904 is a bus cable designed for structured building automation and communication networks, facilitating signal transmission across various terminal devices. This type of cable is commonly installed within walls, conduits, or cable trays to interconnect control units, sensors, and actuators in commercial and residential electrical layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Reaction-to-fire according to EN 13501-6: Class (EF011577): Eca
  • Oil resistant according to EN IEC 60811-404 (EF009770): No
  • Conductor surface (EF010804): Bare
  • Twisted cores (EF012612): Yes
  • Specification material outer sheath (EF011806): Polyethylene (PE)
  • Colour outer sheath (EF001618): White
  • Low smoke according to EN IEC 61034-2 (EF003799): No
  • Nominal voltage U (EF001615): 400 V
  • Nominal voltage U0 (EF001790): 400 V
  • Number of cores (EF001792): 2
  • Screen (EF001791): No
  • Core identification (EF000067): Colour
  • Nominal cross section conductor (EF000060): 0.5 mm²
  • Conductor material (EF001622): Copper
  • Diameter conductor (EF001621): 1.7 mm
  • Outer diameter approx. (EF003921): 4.8 mm

More info

▲
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor0.5 mm²
AWG size20
Nominal cross section conductor (AWG)20 kcmil
Diameter conductor1.7 mm
Conductor categoryClass 2 = stranded
Number of cores2
Twisted coresYes
Material core insulationOther
Specification core insulationOther
Core identificationColour
Core colourWhite
With protective conductorNo
Max. permitted conductor temperature70 °C
ScreenNo
Drain wireNo
Protective barrierNone
Armouring/reinforcementNone
Material outer sheathPolyvinyl chloride (PVC)
Specification material outer sheathPolyethylene (PE)
Colour outer sheathWhite
Low smoke according to EN IEC 61034-2No
Reaction-to-fire according to EN 13501-6: ClassEca
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Oil resistant according to EN IEC 60811-404No
Low temperature resistant according to EN 60811-504+505+506Yes
Outer diameter approximate4.8 mm
Permitted cable outer temperature during assembling/handling-15-70 °C
Permitted cable outer temperature after assembling without vibration-15-70 °C
Nominal voltage U0400 V
Nominal voltage U400 V
Storage temperature-15-70 °C
