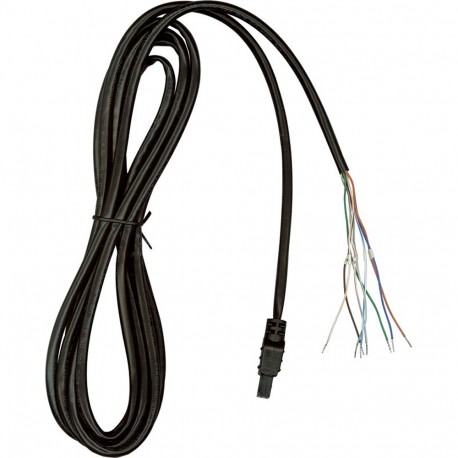

BTICINO 336803 336803 BTCINO BT-CABLE 8 CONTACTS 2 METRES View larger
Images are for illustrative purposes only. Please refer to data sheet for details

336803 BTCINO BT-CABLE 8 CONTACTS 2 METRES

336803

336803

BTICINO

1 Pcs.

BT-CABLE 8 CONTACTS 2 METRES Cable 2 m with plug 2 meter cable with plug

Cables > Power cable less 1 kV, for permanent installation
VIDEO DOOR PHONES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Bticino 336803 cable is a multi-contact connection cable utilized for internal wiring and low-voltage signal routing within automation and control panels. Technicians rely on such flexible conductor assemblies to link modular electronic equipment, inter-panel components, and peripheral peripherals securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour outer sheath (EF001618): Colourless
  • Low smoke according to EN IEC 61034-2 (EF003799): No
  • Nominal voltage U (EF001615): 300 V
  • Nominal voltage U0 (EF001790): 300 V
  • Number of cores (EF001792): 7
  • Screen (EF001791): No
  • Material core insulation (EF000061): Polyvinyl chloride (PVC)
  • Nominal cross section conductor (EF000060): 0.205 mm²
  • Conductor material (EF001622): Copper
  • Diameter conductor (EF001621): 0.91 mm
  • Outer diameter approx. (EF003921): 1 mm
  • Drain wire (EF001029): No
  • Max. conductor temperature (EF003803): 105 °C
  • With protective conductor (EF007468): No
  • Conductor category (EF001632): Class 2 = stranded

More info

▲

Product features

Cable for the connection to the installation of internal posts installed in the desktop stand. Requires taking of 8 contacts.

General characteristics

Cable installation
