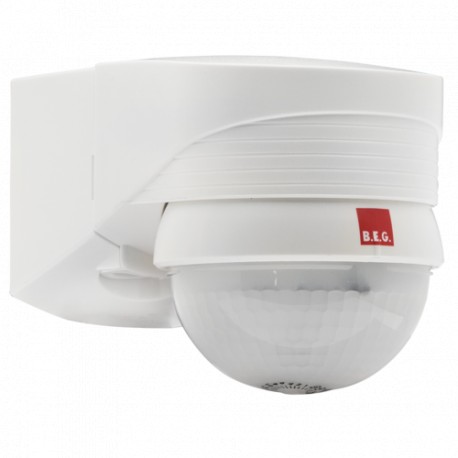

B.E.G. LUXOMAT 91008 91008 LUXOMAT LUXOMAT LC-plus 280, white View larger
Images are for illustrative purposes only. Please refer to data sheet for details

91008 LUXOMAT LUXOMAT LC-plus 280, white

91008

91008

B.E.G. LUXOMAT

1 unit


Automation > Motion and occupancy detectors - B.E.G. LUXOMAT
for outdoor use

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Motion detector is an exterior occupancy sensor supplied by Beg Luxomat, identified by part number 91008 LUXOMAT LUXOMAT LC-plus 280, white. Such sensors manage outdoor illumination schedules by detecting movement within defined coverage areas across building perimeters. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage: 110 – 240 V AC 50 / 60 Hz
  • Dimensions: 110 x 68 x 78 mm
  • Power consumption: approx. 0.24 W
  • Detection area: horizontal 280° (Wall mounting)
  • Range: max. 16 m across max. 9 m towards
  • Monitored area (tangential movement): 620 m² / 2.5 m mounting height
  • Mounting height min./max./recommended: 2 m / 3 m / 2.5 m
  • Degree / class of protection: IP54 / Class II
  • Impact strength: IK02
  • Ambient temperature: -25 °C to +50 °C
  • Housing: polycarbonate, UV-resistant
  • Material color: white mat, similar to RAL9010
  • Switching power: 2000 W, cos φ = 1 1000 VA, cos φ = 0.5 400 W LED
  • Type of contact (k): 1x µ-contact, NO contact
  • Follow-up time: 15 sec – 16 min, Pulse
  • Switch-on threshold: 2 – 500 Lux

More info

▲

Features

DesignationValue
Voltage:110 – 240 V AC 50 / 60 Hz
Dimensions:110 x 68 x 78 mm
Power consumption:approx. 0.24 W
Detection area:horizontal 280° (Wall mounting)
Range:max. 16 m across
max. 9 m towards
Monitored area (tangential movement):620 m² / 2.5 m mounting height
Mounting height min./max./recommended:2 m / 3 m / 2.5 m
Degree / class of protection:IP54 / Class II
Impact strength:IK02
Ambient temperature:-25 °C to +50 °C
Housing:polycarbonate, UV-resistant
Material color:white mat, similar to RAL9010
Channel 1 (lighting control)
DesignationValue
Switching power:2000 W, cosφ= 1
1000 VA, cosφ= 0.5
400 W LED
Type of contact (k):1x µ-contact, NO contact
Follow-up time:15 sec – 16 min, Pulse
Switch-on threshold:2 – 500 Lux

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
