10882 LUXOMAT Arc extinction kit
10882
10882
B.E.G. LUXOMAT
10 units
Automation > Motion and occupancy detectors - B.E.G. LUXOMAT
for outdoor use
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

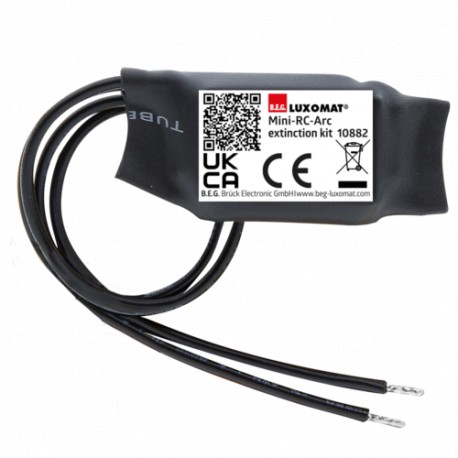

An arc extinction kit component, represented by the 10882 LUXOMAT Arc extinction kit from Beg Luxomat, is implemented in electrical control circuits to suppress voltage spikes and electrical arcs generated during switching operations, thereby protecting relay contacts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage: 230 V AC ±10%
- Dimensions: 50 x 23 x 8 mm
- Degree / class of protection: IP20 / Class II
- Ambient temperature: -25 °C to +50 °C
- Housing: polyolefin
- Material color: black
- Cable length: 150 mm
More info
▲Features
| Designation | Value |
|---|---|
| Voltage: | 230 V AC ±10% |
| Dimensions: | 50 x 23 x 8 mm |
| Degree / class of protection: | IP20 / Class II |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | polyolefin |
| Material color: | black |
| Cable length: | 150 mm |
