View larger
Images are for illustrative purposes only. Please refer to data sheet for details

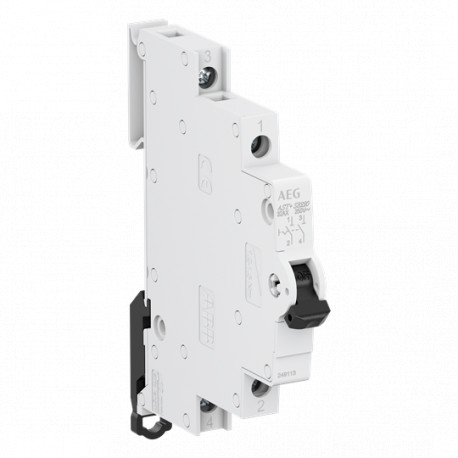

2CCG000211R0001 AEG AST+SZ 16A 1NA Switch (Pos. 0)
2CCG000211R0001
2CCG000211R0001
AEG
1 Pcs.
AST+SZ 16A 1NA Switch (Pos. 0)
AST+ SZ161 Switch 1P - 1 CO - 0 NC - 0 NO
Automation > Main switch for distribution board
Power management
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Extended Product Type:
- AST+ SZ161
- Product ID:
- 2CCG000211R0001
- EAN:
- 5413656616887
- Catalog Description:
- AST+ SZ161 Switch 1P - 1 CO - 0 NC - 0 NO
- Long Description:
- Group switches (I-0-II) according DIN EN 60669-1, VDE 0632 Part 1, Rated currents: 16/25 A, 250 VACPDC, Contacts: 1 CO/2 CO, Module width: 0,5/1
Technical
- Standards:
- EN60669-1
- Rated Voltage (Ur):
- 250 V
Minimum 24 V
- Rated Operational Voltage:
- 250 V
- Input Voltage Type:
- AC
- Rated Current (In):
- 16 A
- Rated Service Short-Circuit Breaking Capacity (Ics):
- 3 kA
- Rated Frequency (f):
- 50 Hz
- Number of Contacts CO:
- 1
- Number of Contacts NC:
- 0
- Number of Contacts NO:
- 0
- Number of Poles:
- 1
- Switch Type:
- Group
- Cover Color:
- Grey
- Number of Batteries:
- 0
Environmental
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 9AKK108467A6961
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Width in Number of Modular Spacings:
- 0.5
- Product Net Width:
- 9mm
- Product Net Height:
- 67.5mm
- Product Net Depth / Length:
- 85mm
- Product Net Weight:
- 44g
- Built-In Depth (t2):
- 68 mm
Ordering
- Package Level 1 Units:
- box 10 piece
- Package Level 1 Gross Weight:
- 475 g
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK108467A6961
Installation
- Instructions and Manuals:
- No document needed
Popular Downloads
- Data Sheet, Technical Information:
- No document needed
Classifications
- ETIM 8:
- EC001545 - Main switch for distribution board
- ETIM 9:
- EC001545 - Main switch for distribution board
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85365053
- eClass:
- V11.0 : 27142301
- Object Classification Code:
- Q
