View larger
Images are for illustrative purposes only. Please refer to data sheet for details

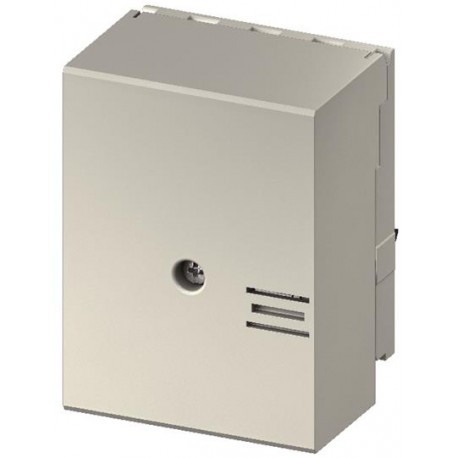

ZLS224 2CCF015196R0001 ABB ZLS224 Incoming terminal block
ZLS224
2CCF015196R0001
ABB
1 Pcs.
ZLS224 Incoming terminal block
Automation > Busbar
SMISSLINE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Ordering
| EAN: | 7612270019816 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389040 |
| Replacement Product ID (NEW): | ZLS924-3LN |
Dimensions
| Product Net Width: | 72 mm |
| Product Net Height: | 50 mm |
| Product Net Length: | 95 mm |
| Product Net Depth / Length: | 95 mm |
| Product Net Weight: | 180 g |
Container Information
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 74 mm |
| Package Level 1 Height: | 87 mm |
| Package Level 1 Depth / Length: | 100 mm |
| Package Level 1 Gross Weight: | 213 g |
| Package Level 1 EAN: | 7612270019816 |
| Package Level 2 Units: | 1 |
Environmental
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
Additional Information
| Product Main Type: | ZLS |
| Product Name: | Incoming terminal block |
| Rated Current (In): | 160 A |
| Rated Operational Voltage: | 690/1000 V AC/DC |
| RoHS Date: | 20170426 |
| Standards: | IEC/EN 61439-6 |
| Type of Residual Current: | standard version |
Certificates and Declarations (Document Number)
| Data Sheet, Technical Information: | 2CCC451059C0203-REV-B |
| Declaration of Conformity - CE: | 2CCC451043D0201 |
| Environmental Information: | 2CCY451206D0201 |
| Instructions and Manuals: | 2CCC451042M0205 |
| RoHS Information: | 2CCC413008D0206 |
| Dimension Diagram: | 20165 |
Classifications
| ETIM 4: | EC001522 - Busbar |
| ETIM 5: | EC001522 - Busbar |
| ETIM 6: | EC001522 - Busbar |
| ETIM 7: | EC001522 - Busbar |
| Object Classification Code: | W |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
