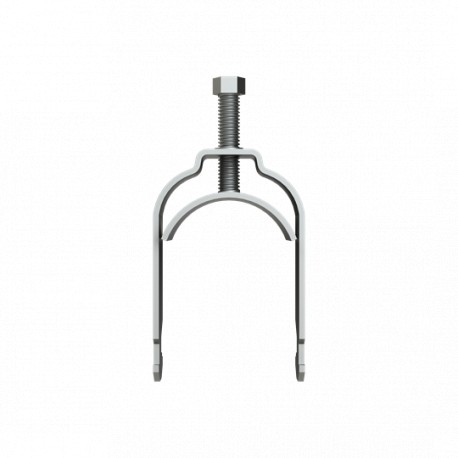

ABB 2CPX060006R9999 2CPX060006R9999 ABB ZK144 Terminal 40-46mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX060006R9999 ABB ZK144 Terminal 40-46mm

2CPX060006R9999

060006

ABB

1 Pcs.

ZK144 Terminal 40-46mm ZK144 Cable tie ø40÷46 Terminals, 45 mm x 50 mm x 110 mm

Cables > One-piece strut clamp
CombiLine-M

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB 2CPX060006R9999 terminal hardware provides dependable mechanical termination and cable fastening inside electrical distribution equipment. Such components ensure secure connection points and steady physical support for conductors in switchgear assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of Cables: 1
  • Enclosure Type: Terminals
  • Clamp Material: Stainless Steel
  • Screw Material: Stainless Steel
  • DIN Place Units: 0
  • Meter Boards: 0
  • Cable Size: 46 mm
  • Surface Finishing: Surface clamp: Continuously galvanized
  • Material: Stainless steel
  • RoHS Declaration: 2CPC100019X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20240903
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240902
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363

More info

▲
Technical
Number of Cables1
Enclosure TypeTerminals
Clamp MaterialStainless Steel
Screw MaterialStainless Steel
DIN Place Units0
Meter Boards0
Cable Size46 mm
Design
Surface FinishingSurface clamp: Continuously galvanized
Surface screw: Untreated
Untreated
MaterialStainless steel
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Dimensions
Product Net Width50 mm
Product Net Height45 mm
Product Net Depth / Length110 mm
Product Net Weight0.08 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.083 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Mounting Typeprofile rail
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC000454 - One-piece strut clamp
ETIM 10EC000454 - One-piece strut clamp
eClassV11.0 : 23140202
Object Classification CodeU
