View larger
Images are for illustrative purposes only. Please refer to data sheet for details

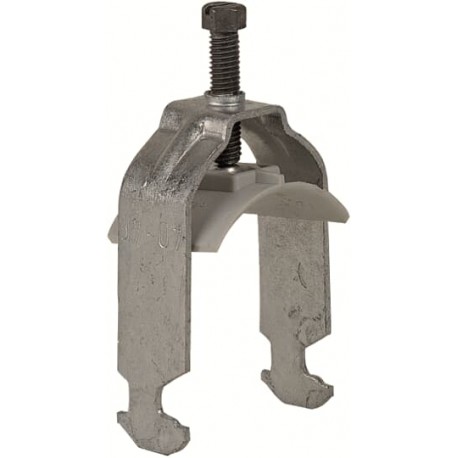

2CPX060005R9999 ABB ZK143 Terminal 22-28mm
2CPX060005R9999
060005
ABB
1 Pcs.
ZK143 Terminal 22-28mm
ZK143 Cable tie ø22÷28
Terminals, 35 mm x 35 mm x 70 mm
Cables > One-piece strut clamp
CombiLine-M
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Cables | 1 |
| Enclosure Type | Terminals |
| Clamp Material | Stainless Steel |
| Screw Material | Stainless Steel |
| DIN Place Units | 0 |
| Meter Boards | 0 |
| Cable Size | 28 mm |
| Design | |
| Surface Finishing | Surface clamp: Continuously galvanized |
| Surface screw: Untreated | |
| Untreated | |
| Material | Stainless steel |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Dimensions | |
| Product Net Width | 35 mm |
| Product Net Height | 35 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 0.05 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.052 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Mounting Type | profile rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000454 - One-piece strut clamp |
| ETIM 10 | EC000454 - One-piece strut clamp |
| eClass | V11.0 : 23140202 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Chucking range (EF002391) | 22 mm |
| For pipe size metric (M..) (EF004713) | 28 |
| Max. number of cables (EF001052) | 1 |
| Material clamp (EF006530) | Stainless steel |
| Material screw (EF006529) | Stainless steel |
| With counter shell (EF014681) | No |
| Halogen free (EF000025) | No |
