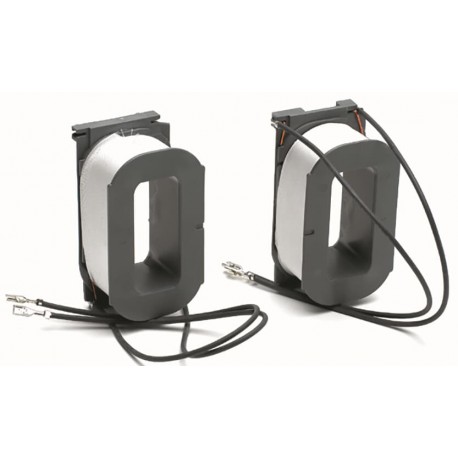

1SFN156170R6806 ABB ZAF750 24-60V DC Operating Coil

1SFN156170R6806

156170

ABB

1 Pcs.

ZAF750 24-60V DC Operating Coil ZAF750 BOB.24-60Vdc for CONT. AF580-750

Automation > Accessories/spare parts for low-voltage switch technology
connectors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1SFN156170R6806 ZAF750 24-60V DC operating coil drives the electromagnetic actuation mechanism within high-power block contactors. Replacement coils convert control voltage signals into magnetic force to reliably close main power contacts under demanding industrial loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85045095
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SFC380023-en
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 212 mm
  • Product Net Depth / Length: 142 mm
  • Product Net Height: 62 mm
  • Product Net Weight: 1.34 kg
  • Rated Control Circuit Voltage (U c ): DC Operation 24 ... 60 V
  • Terminal Type: Screw Terminals
  • Suitable For: AF580
  • Suitable for Product Class: Block Contactors
  • Product Name: Operating Coil
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACHDeclaration: 2CMT2021-006202

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85045095
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SFC380023-en
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width212 mm
Product Net Depth / Length142 mm
Product Net Height62 mm
Product Net Weight1.34 kg
Technical
Rated Control Circuit Voltage (Uc)DC Operation 24 ... 60 V
Terminal TypeScrew Terminals
Suitable ForAF580
AF750
AF1250
GAF750
GAF1250
Suitable for Product ClassBlock Contactors
Product NameOperating Coil
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
Declaration of Conformity - CE2CMT005309
Declaration of Conformity - UKCA2CMT2020-006120
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width255 mm
Package Level 1 Depth / Length74 mm
Package Level 1 Height170 mm
Package Level 1 Gross Weight1.62 kg
Package Level 1 EAN7320500222607
External Classifications and Standards
Object Classification CodeM
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39121010
IDEA Granular Category Code (IGCC)4144 >> Coil for low-voltage

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
