View larger
Images are for illustrative purposes only. Please refer to data sheet for details

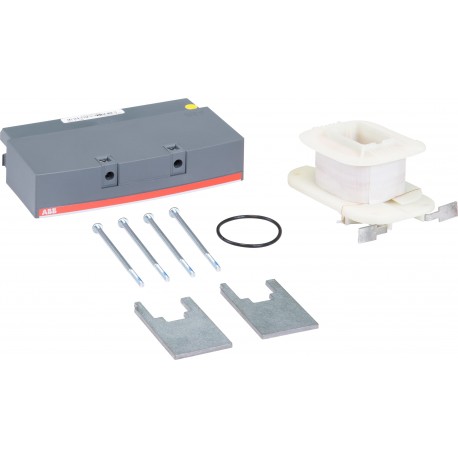

1SFN155770R6906 ABB ZAF460 48-130V Operating Coil
1SFN155770R6906
155770
ABB
1 Pcs.
ZAF460 48-130V Operating Coil
ZAF460 BOB. 50-130Vac/dc for CONT. AF460
Automation > Accessories/spare parts for low-voltage switch technology
connectors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85045095 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC380023-en |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 180 mm |
| Product Net Depth / Length | 140 mm |
| Product Net Height | 45 mm |
| Product Net Weight | 0.53 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF400 |
| AF460 | |
| GAF460 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Operating Coil |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT005309 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 255 mm |
| Package Level 1 Depth / Length | 74 mm |
| Package Level 1 Height | 170 mm |
| Package Level 1 Gross Weight | 0.79 kg |
| Package Level 1 EAN | 7320500222577 |
| External Classifications and Standards | |
| Object Classification Code | M |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121010 |
| IDEA Granular Category Code (IGCC) | 4144 >> Coil for low-voltage |
| E-Number (Norway) | 3229128 |
