View larger
Images are for illustrative purposes only. Please refer to data sheet for details

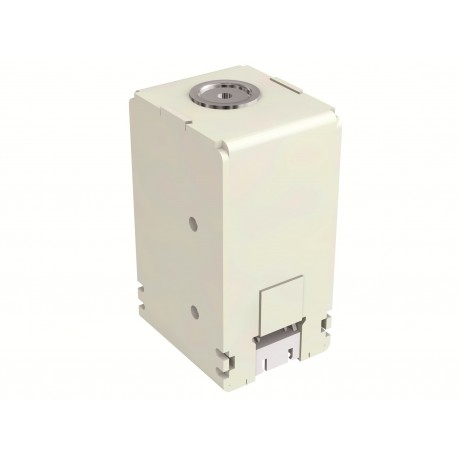

1SDA073679R1 ABB YO E1.2..E6.2 480-500 VAC
1SDA073679R1
073679
ABB
1 Pcs.
YO E1.2..E6.2 480-500 VAC
YO OPENING COIL 440VAC-E1.2/E6.2
YO E1.2..E6.2-XT7-XT7M 480-500 VAC
Automation > Switch spool for power circuit breaker
Accessories E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108470A3433 |
| 9AKK108470A7423 | |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZEASM |
| EAN | 8015644776121 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 55 mm |
| Product Net Depth / Length | 135 mm |
| Product Net Weight | 0.12 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 105 mm |
| Package Level 1 Height | 55 mm |
| Package Level 1 Depth / Length | 135 mm |
| Package Level 1 Gross Weight | 0.15 kg |
| Package Level 1 EAN | 8015644776121 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2, Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT7-XT7M, E1.2, E2.2, E4.2, E6.2 |
| Suitable for Product Class | SACE Tmax XT, SACE Emax 2 |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Order Multiple | 1 piece |
| Rated Voltage (Ur) | 480...500 V |
| Standards | IEC |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| 1SDC210100D0204 | |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| 9AKK106713A5902 | |
| 9AKK106713A5545 | |
| 9AKK106713A5544 | |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH000999R0502 |
| 1SDH001000R0502 | |
| External Classifications and Standards | |
| ETIM 9 | EC002483 - Switch spool for power circuit breaker |
| ETIM 10 | EC002483 - Switch spool for power circuit breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370421 |
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 480 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 480 V |
| Voltage type for actuating (EF008242) | AC |
| Built as switching-on coil (EF005914) | No |
| Built as switch-off coil (EF006263) | Yes |
