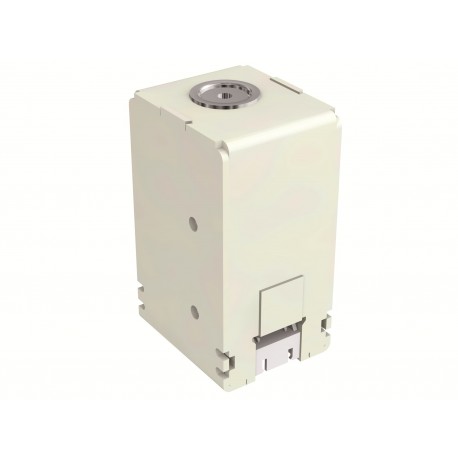

ABB 1SDA073677R1 1SDA073677R1 ABB YO E1.2..E6.2 380-400 VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073677R1 ABB YO E1.2..E6.2 380-400 VAC

1SDA073677R1

073677

ABB

1 Pcs.

YO E1.2..E6.2 380-400 VAC YO OPENING COIL 380VAC-E1.2/E6.2 YO E1.2..E6.2-XT7-XT7M 380-400 VAC

Automation > Switch spool for power circuit breaker
Accessories E1.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Shunt release device part number 1SDA073677R1 manufactured by Abb. These internal breaker attachments provide dependable remote actuation for electrical switching assemblies, ensuring compliance with system protection requirements.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Environmental Product Declaration - EPD: 9AKK108470A3433
  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: ZEASK
  • EAN: 8015644776107
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Width: 105 mm
  • Product Net Height: 55 mm
  • Product Net Depth / Length: 135 mm
  • Product Net Weight: 0.12 kg
  • Package Level 1 Units: box 1 piece

More info

▲
ABB EcoSolutions
Environmental Product Declaration - EPD9AKK108470A3433
9AKK108470A7423
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZEASK
EAN8015644776107
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Width105 mm
Product Net Height55 mm
Product Net Depth / Length135 mm
Product Net Weight0.12 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width105 mm
Package Level 1 Height55 mm
Package Level 1 Depth / Length135 mm
Package Level 1 Gross Weight0.15 kg
Package Level 1 EAN8015644776107
Additional Information
Product Main TypeAccessories for Emax 2, Accessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT7-XT7M, E1.2, E2.2, E4.2, E6.2
Suitable for Product ClassSACE Tmax XT, SACE Emax 2
Technical
Configuration TypeLoose or configurable
Current TypeAC
Order Multiple1 piece
Rated Voltage (Ur)380...400 V
StandardsIEC
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC200023D0209
1SDC210100D0204
Declaration of Conformity - CE9AKK106713A5546
9AKK106713A5902
9AKK106713A5545
9AKK106713A5544
UL CertificateNo certification needed
VDE CertificateNo certification needed
Instructions and Manuals1SDH000999R0502
1SDH001000R0502
External Classifications and Standards
ETIM 9EC002483 - Switch spool for power circuit breaker
ETIM 10EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
Object Classification CodeQ
UNSPSC39121601
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370421
