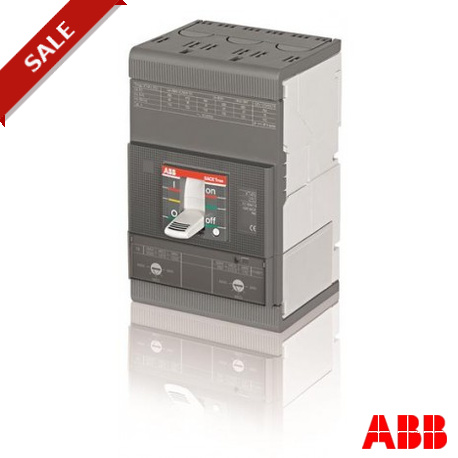

XT4V250 1SDA068409R1 ABB XT4V 250 TMA 200-2000 3p F F
XT4V250
1SDA068409R1
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing reliable protection for electrical distribution systems, this Abb automatic circuit breaker safely interrupts high short-circuit currents and mitigates overload risks. It is a fundamental component for maintaining safety in industrial switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Circuit Breaker Type to be Associated: Power distribution
- Electrical Durability: 120 cycles per hour 8000 cycle
- Mechanical Durability: Nr. Operations 240 cycles per hour Nr. Operations 25000 cycle
- Number of Poles: 3
- Opening Time: CB with SOR 15 ms CB with UVR 15 ms
- Power Loss: at Rated Operating Conditions per Pole 11.88 W
- Product Main Type: SACE Tmax XT
- Product Name: Automatic Circuit Breaker
- Product Type: CB
- Rated Current (I n ): 200 A
- Rated Frequency (f): 50 / 60 Hz
- Rated Impulse Withstand Voltage (U imp ): 8 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Voltage: 690 V AC 500 V DC
- Rated Uninterrupted Current (I u ): 250 A
- Rated Voltage (U r ): 690 V
More info
▲C.BREAKER TMAX XT4V 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 200 I3=1000...2000 A
Ordering
- EAN:
- 8015644023157
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362090
Dimensions
- Product Net Width:
- 105mm
- Product Net Height:
- 160mm
- Product Net Depth:
- 82.5mm
- Product Net Weight:
- 2.5kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 145 mm
- Package Level 1 Height:
- 210 mm
- Package Level 1 Length:
- 168 mm
- Package Level 1 Gross Weight:
- 2.5 kg
- Package Level 1 EAN:
- 8015644023157
Additional Information
- Circuit Breaker Type to be Associated:
- Power distribution
- Electrical Durability:
- 120 cycles per hour
8000 cycle
- Mechanical Durability:
- Nr. Operations 240 cycles per hour
Nr. Operations 25000 cycle
- Number of Poles:
- 3
- Opening Time:
- CB with SOR 15 ms
CB with UVR 15 ms
- Power Loss:
- at Rated Operating Conditions per Pole 11.88 W
- Product Main Type:
- SACE Tmax XT
- Product Name:
- Automatic Circuit Breaker
- Product Type:
- CB
- Rated Current (In):
- 200 A
- Rated Frequency (f):
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 690 V AC
500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (220 V AC) 200 kA
(220 V AC) 200 kA
(380 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 70 kA
(690 V AC) 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 70 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 150 kA
(500 V DC) 3 Poles in Series 150 kA
- Rated Uninterrupted Current (Iu):
- 250 A
- Rated Voltage (Ur):
- 690 V
- Release Type:
- TM
- Standards:
- IEC 60947
- Sub-type:
- XT4
- Terminal Connection Type:
- Fixed Circuit-Breakers
Front
- Version:
- F
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SDC210033D0201
- Declaration of Conformity - CE:
- 1SDL000165R0012
- GL Certificate:
- 1SDL000163R0095
- LR Certificate:
- 1SDL000163R0100
Classifications
- ETIM 4:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 5:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- Object Classification Code:
- Q
- UNSPSC:
- 39120000
