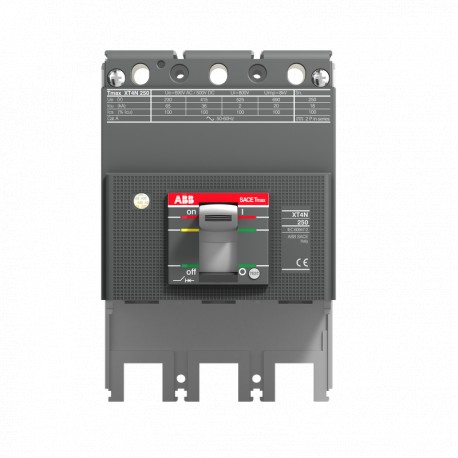

1SDA068174R1 ABB XT4S250 PART OF INTERRUPTION 3P F F

1SDA068174R1

068174

ABB

1 Pcs.

XT4S250 PART OF INTERRUPTION 3P F F XT4S250 3P F F INTERRUPT PART XT4S 250 BREAKING PART 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 56.30 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2351
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108469A1857
9AKK108468A1892
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPdb19ab00-75ae-4c1a-8aa7-9cefa598a266 Italy (IT)
Simplified SCIP0f3c9348-dbbc-4615-a185-c7d3bbc6fc5e Spain (ES)
cccc5300-f795-4eb0-88af-021fbcff19e9 Belgium (BE)
9fe15bb1-ed57-4ce0-8693-46fa6431c0ba Hungary (HU)
3502fe89-21ed-4de4-a718-05715b523045 France (FR)
30c295a4-bed2-471e-a0c3-f79bc223b969 Germany (DE)
105f2f5f-13a2-47fa-b468-1d31cf254bb1 Germany (DE)
718e5068-0521-4dbf-b1de-919cafc715f1 Denmark (DK)
01839e59-6d97-4555-b5e3-52bf5c7003db Sweden (SE)
afd14098-82bd-4b4f-80a9-0d5d4382dd61 Czech Republic (CZ)
a24a047e-bce7-4592-bb83-c68ce5c5ae07 Croatia (HR)
5afe3a79-768e-415c-b9c4-9436e2b4c694 Germany (DE)
37441f36-9439-43d5-87d7-24d0e338fdae Poland (PL)
e78e0fb1-3fff-4ea5-abe0-c97f0be3f138 Estonia (EE)
d5bbe48a-dfbe-418f-b2d3-f54fcab67262 Belgium (BE)
a0ef6336-25c0-4fcb-80fa-eaab3187f619 Finland (FI)
ee6625d8-026a-4566-b808-ebf72a33c401 Hungary (HU)
f924a4ce-ff75-43a9-9ddf-89e8fbd8bba8 France (FR)
526fc212-551d-42d2-b090-98d2c20e7397 Germany (DE)
1e147977-91f0-4aa1-b7d4-729538030b54 Greece (GR)
c8c11288-edd7-4356-9608-85fd7739fd3a Portugal (PT)
1cd3df15-6fd7-44f4-8ddd-5728948e2bbf Netherlands (NL)
3c2ce795-bc38-401e-9625-f5fce24eaa1f Poland (PL)
316d3f21-ec27-456e-854f-1e47bc420e03 Bulgaria (BG)
3b547a02-0daa-487a-9eb2-f08ce7460767 Poland (PL)
8701e82e-91db-4da3-8d97-f9269347500c Sweden (SE)
0c4f95ee-703e-4a1a-925f-6f88799b4b74 Norway (NO)
55f403ee-8292-4da5-8e2f-eb1a9e087b6c Germany (DE)
Ordering
E-Number (Finland)3641074
EAN8015644020712
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width105 mm
Product Net Height160 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.82 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width171 mm
Package Level 1 Height215 mm
Package Level 1 Depth / Length151 mm
Package Level 1 Gross Weight1.916 kg
Package Level 1 EAN8015644020712
Additional Information
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles3
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeBreaking Part
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 2 Poles in Series 50 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 2 Poles in Series 50 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)250 A
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT4
Terminal Connection TypeFront
VersionF
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5529
GL Certificate1SDL000163R0095
LR Certificate1SDL000163R0100
Instructions and Manuals1SDH000722R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
