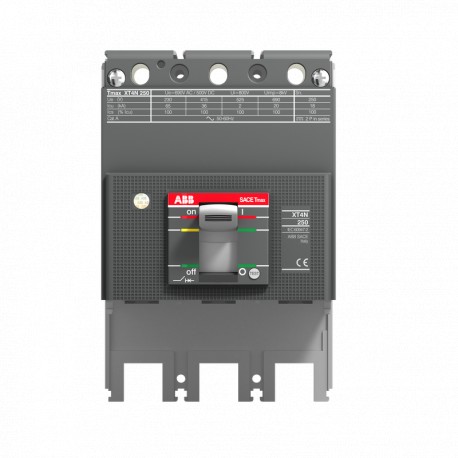

1SDA068173R1 ABB XT4N250 PART OF INTERRUPTION 3P F F
1SDA068173R1
068173
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA068173R1 XT4N250 PART OF INTERRUPTION 3P F F is a modular circuit breaker component designed for electrical fault interruption within industrial panel boards. This sub-assembly integrates into larger protective devices to maintain network stability and protect downstream equipment from electrical faults.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 56.30 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2351
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108469A1857
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: a8641d07-a8d6-4eb5-9e76-4c8418367693 Italy (IT)
- Simplified SCIP: 95e88b62-c31b-43e1-9642-75cfd983e3cd France (FR)
- EAN: 8015644696184
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2351 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a8641d07-a8d6-4eb5-9e76-4c8418367693 Italy (IT) |
| Simplified SCIP | 95e88b62-c31b-43e1-9642-75cfd983e3cd France (FR) |
| 3ec64800-2e6a-4e41-95c5-9b9d037dd07f Belgium (BE) | |
| 19d8b199-fe9b-4cb9-802e-eb1256a62083 Spain (ES) | |
| 6ebd5e03-62f8-4fed-b747-0619fd52a64f Hungary (HU) | |
| b0c6370e-c6b2-4247-95f4-eb55f61c4398 Germany (DE) | |
| 002bfab0-037e-4fa8-af23-2510269b645b Czech Republic (CZ) | |
| fb2e6ca8-324d-49e1-beae-6031557ec8bd Denmark (DK) | |
| 86a21dc3-a0fb-4c90-9d45-300f7d4bba26 Sweden (SE) | |
| 37baf07f-9dad-41e0-92a2-e50c001830a8 Portugal (PT) | |
| eb69a847-3283-4cb3-94ef-f886ad77cae5 Germany (DE) | |
| a903063a-3652-4e69-ba72-57a452bc583f Germany (DE) | |
| 8312f4c6-e269-434d-9602-0e032f39b82c Croatia (HR) | |
| 105e9c07-a51f-4e97-88e8-06996233ee52 Germany (DE) | |
| bece2ded-b36d-4ec1-a727-aa20cd4e5a04 Poland (PL) | |
| 7d5a2634-b83a-4c65-84fc-283c7e0cd973 Bulgaria (BG) | |
| 80929283-6575-4351-8a1b-3f68f2bb2309 Poland (PL) | |
| fa63b5a4-f40a-4c46-9618-71fb3f542626 Greece (GR) | |
| 69ccf270-558d-417b-b3bf-bd0386f88635 France (FR) | |
| 604cda45-987d-4ef4-b253-d02697f901d1 Germany (DE) | |
| 4b56810c-6d78-41f8-8966-fef73848ccc7 Netherlands (NL) | |
| 42253319-4972-4455-af08-4d8adbe19394 Norway (NO) | |
| 6dea7ec0-e4b9-4abb-b451-71b1a1d93cce Finland (FI) | |
| a1c350a6-90df-41a9-a64d-10a68c603571 Sweden (SE) | |
| 236a28df-78f0-4fd9-bf7d-c53d027c5a40 Poland (PL) | |
| 36078346-b08e-498f-b62a-e9f5f67cf80a Hungary (HU) | |
| 662484a3-585a-48a2-ae00-95f4be55d2fc Estonia (EE) | |
| 8c093357-9fab-4753-bb44-a46622827c26 Belgium (BE) | |
| Ordering | |
| EAN | 8015644696184 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.826 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 171 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Depth / Length | 151 mm |
| Package Level 1 Gross Weight | 1.922 kg |
| Package Level 1 EAN | 8015644696184 |
| Additional Information | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Version | F |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 2CDC210017C0101 |
| 1SDC210100D0206 | |
| 1SXF210033C2001 | |
| 1SDC210099D0206 | |
| 1SXF210034C2001 | |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| GL Certificate | 1SDL000163R0095 |
| LR Certificate | 1SDL000163R0100 |
| Wiring Diagram | |
| Instructions and Manuals | 1SDH000722R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
