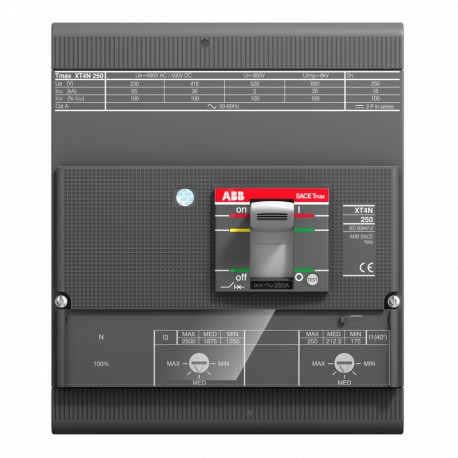

ABB 1SDA068109R1 1SDA068109R1 ABB XT4N 250 TMA 200-2000 4p F F InN 100% View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068109R1 ABB XT4N 250 TMA 200-2000 4p F F InN 100%

1SDA068109R1

068109

ABB

1 Pcs.

XT4N 250 TMA 200-2000 4p F F InN=100% XT4N250 TMA R200 Im2000 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 56.3 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2351
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108469A1857
9AKK108468A1892
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPdbf6e219-bb32-4109-8dcb-1f136b98a70e Italy (IT)
Simplified SCIPb4da11e0-0581-4733-b8d9-84d32d6c20af Hungary (HU)
4a4c0d2f-9b83-4c13-a2bf-bc1a0fe6ee67 France (FR)
9320627a-aec8-4cb1-a348-e97b2921eeb6 Belgium (BE)
a450b123-075e-4235-bcc1-49f7c37e92b8 Denmark (DK)
bfa512e6-ee49-4087-9e69-7290a2cac55a Spain (ES)
5b27f7fb-bb60-4b73-8dbb-79d069cbdcb2 Sweden (SE)
7b6be281-7a8a-4006-bc37-304655fd9a95 Germany (DE)
29c222e2-5909-4c53-b078-c62d036e462b Croatia (HR)
f4a7fa59-ef4d-47e8-8248-f09419868f81 Germany (DE)
541f3c20-c8f5-42fe-b06c-7253c3bcf0a1 Czech Republic (CZ)
890257fb-b119-44ce-9eb0-3081cbe853a5 Germany (DE)
59f8a6c4-d2a5-43af-a55e-29e91e76f2a4 Sweden (SE)
0ae02483-72d9-4bab-8e2f-48df41db86ca Poland (PL)
d8fd86b0-4c67-412c-aae0-1cc12e693426 Finland (FI)
c114772d-98eb-41fc-ac0b-95438470098b Hungary (HU)
23721aa3-c3ca-4fba-a129-a65a08e7b2f8 Greece (GR)
41a24f1a-9a37-42bf-8a60-b0a50bffeef5 Belgium (BE)
d8a13ae4-600c-4e72-af8f-fdd92e06395f Estonia (EE)
39891621-9115-4522-ad2d-1fd8655b16b5 France (FR)
4d8211e0-2822-4b5f-a8c6-ee46c40ae882 Portugal (PT)
3101ae52-a96d-45ac-b024-c2c454335526 Germany (DE)
4ca8e776-fb4d-4e01-8736-1bfa16ce6c1d Germany (DE)
beb7934e-2761-406f-808e-9eb38be1f24b Bulgaria (BG)
9af53ab3-25e6-43a2-b496-3ff6033b63d6 Poland (PL)
172587d0-fcd7-49a6-a6a3-713dc5e19738 Poland (PL)
2bcfc708-1792-4385-885c-3f8b795189d6 Norway (NO)
d6b6a253-4be3-49f3-a468-4284026afe84 Netherlands (NL)
Ordering
Order Code US and CanadaXT4NE4200BFF000XXX
EAN8015644014001
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height160 mm
Product Net Depth / Length82.5 mm
Product Net Weight3.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width145 mm
Package Level 1 Height210 mm
Package Level 1 Depth / Length168 mm
Package Level 1 Gross Weight3.5 kg
Package Level 1 EAN8015644014001
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 85..200 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 11.88 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)200 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)1000…2000 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Uninterrupted Current (Iu)250 A
Recommended Screw DriverMain Circuit M8
ReleaseTMA
Release TypeTM
Setting Range140...200 A
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT4
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque8 N·m
VersionF
CAD Dimensional Drawing1SDH001295R0677
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5529
GL Certificate1SDL000163R0095
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000722R0100
Mechanical Drawings1SDH000722R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000722R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
