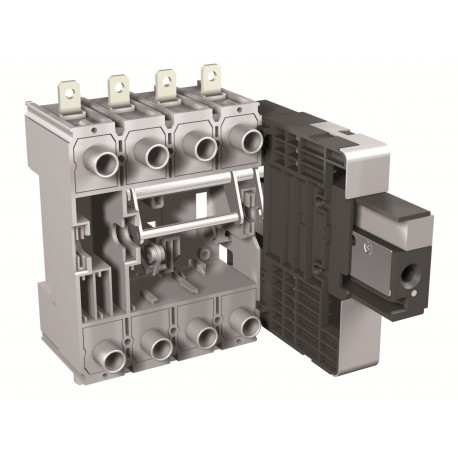

1SDA068205R1 ABB XT4 W FP 3p HR
1SDA068205R1
068205
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA068205R1 ABB XT4 W FP 3p HR is a fixed part functioning as the cradle base for withdrawable molded case circuit breakers, securing the device inside electrical switchboards while organizing main circuit connections. This assembly enables operators to rack the protective device safely between connected, test, and disconnected positions. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: KXT4EWFPHR-3
- EAN: 8015644021016
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.82 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 195 mm
- Package Level 1 Height: 220 mm
- Package Level 1 Depth / Length: 260 mm
- Package Level 1 Gross Weight: 2.02 kg
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXT4EWFPHR-3 |
| EAN | 8015644021016 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.82 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 195 mm |
| Package Level 1 Height | 220 mm |
| Package Level 1 Depth / Length | 260 mm |
| Package Level 1 Gross Weight | 2.02 kg |
| Package Level 1 EAN | 8015644021016 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Number of Poles | 3 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Suitable For | XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Rear flat Horizontal | |
| Version | W |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000722R0005 |
| Classifications | |
| ETIM 7 | EC002043 - Chassis part power circuit breaker |
| ETIM 8 | EC002043 - Chassis part power circuit breaker |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
