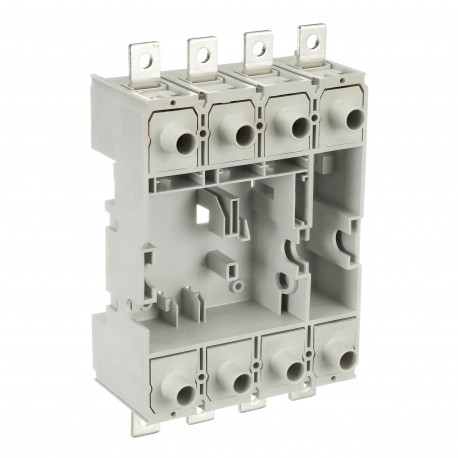

1SDA068198R1 ABB XT4 P FP 4p EF
1SDA068198R1
068198
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as a secure receptacle within modular electrical enclosures, the Abb 1SDA068198R1 XT4 P FP 4p EF functions as a plug-in fixed part for molded case circuit breakers. This mounting foundation bridges the main power bus and the protective device, facilitating straightforward installation and routine maintenance tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 63cd7419-7779-4ba5-8155-a5128da98bee Italy (IT)
- Simplified SCIP: f8c05df1-5041-4827-b264-d734922e1ba6 Germany (DE)
- Order Code US and Canada: KXT4PFPEF-4
- E-Number (Finland): 3641065
- E-Number (Sweden): 3182055
- EAN: 8015644020941
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.270 kg
- Package Level 1 Units: box 1 piece
More info
