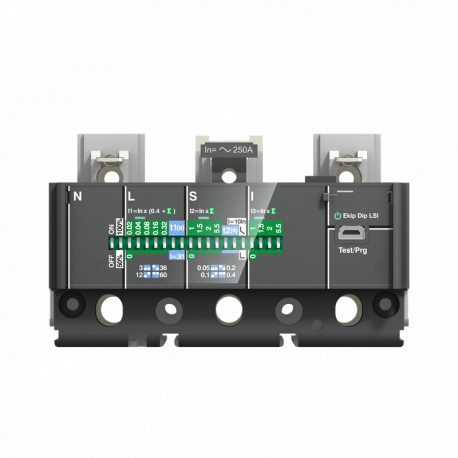

1SDA068028R1 ABB Rele Ekip M-LIU In40 3P XT4
1SDA068028R1
068028
ABB
1 Pcs.
Rele Ekip M-LIU In40 3P - XT4
RELAY ELECT. Ekip M-LIU In40 3P - XT4
Ekip M Dip LIU In=40A XT4 3p
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Electronic release unit 1SDA068028R1 ABB Rele Ekip M-LIU In40 3P XT4 provides specialized motor protection capabilities within compatible circuit breakers, guarding against phase unbalance, overloads, and locked-rotor conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- E-Number (Finland): 3641276
- EAN: 8015644014384
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 110 mm
- Package Level 1 Height: 100 mm
- Package Level 1 Depth / Length: 150 mm
- Package Level 1 Gross Weight: 1.1 kg
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| E-Number (Finland) | 3641276 |
| EAN | 8015644014384 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 8015644014384 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Number of Poles | 3 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Rated Current (In) | 40 A |
| Release | Ekip M Dip LIU |
| Release Type | EL |
| Standards | IEC60947-2 |
| Suitable For | XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0507 |
| 1SDH000721R0505 | |
| Classifications | |
| ETIM 7 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 8 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
