> ABB > Molded case "Isomax-Tmax" > XT3 > 068232

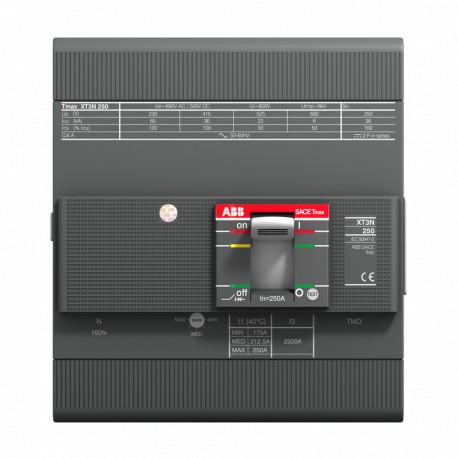

ABB 1SDA068232R1 1SDA068232R1 ABB XT3S 250 TMD 250-2500 4p F F InN 100% View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068232R1 ABB XT3S 250 TMD 250-2500 4p F F InN 100%

1SDA068232R1

068232

ABB

1 Pcs.

XT3S 250 TMD 250-2500 4p F F InN=100% XT3S250 TMD R250 Im2500 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
XT3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 56.6 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2350
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108468A2294
9AKK108468A7794
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPc828fac0-1414-4ea7-8f3d-594992e3a241 Italy (IT)
Simplified SCIP6cd88a1b-5929-437d-910e-59262eae3a1f Germany (DE)
752434c0-4f70-40d4-8a0f-6d2398ed9c2d France (FR)
2adb0208-36f2-429a-9197-cf01a94de0d4 Sweden (SE)
9199193d-e35e-4a41-be85-13427af89e12 Germany (DE)
76d79ee8-d9f4-4d53-a165-14148cff449f Bulgaria (BG)
47cff470-b445-433b-b038-ceefe6964b04 Sweden (SE)
107ae197-bd49-4370-a9f1-1e59e21bcb56 Poland (PL)
1fdb4da6-7046-42e0-88e5-8bb14daba887 Germany (DE)
052565e0-aabd-40a2-8320-3df14b0e0a29 France (FR)
f3525828-c110-4726-822f-b25a3dbc28ab Netherlands (NL)
04f436cf-5031-4ba9-a0e2-b8747ae3e091 Spain (ES)
e585a0c8-d37a-4364-93e5-7675f80630b9 Netherlands (NL)
97275318-3257-4631-982d-a2a889a0d40c Poland (PL)
6220bfd3-9488-4cce-bf28-9b52a9d9adde Norway (NO)
37248719-bfa1-4f8a-99cc-7014f87c4888 Finland (FI)
470a33f1-d8c6-4708-b41c-87716a6fc286 Netherlands (NL)
c417736f-9dd0-43dc-899f-d0664c66fcc7 Germany (DE)
4a187b67-a444-4749-92da-560c2d437ac4 Denmark (DK)
ff499dbe-5f33-4579-9be0-e28d7e0d05ff Germany (DE)
51cb1d56-788d-4966-9a6e-a608cac4ed81 Croatia (HR)
eaa7b318-21fd-451f-9e65-c3145955cf0d Czech Republic (CZ)
d8f9f28f-e9dc-4245-a43b-1b6aae595674 Poland (PL)
db3035d4-b67c-4457-8c7f-295c8b552f26 Netherlands (NL)
626f76cc-eaff-4acc-b9e5-bb34e2ff8a7f Netherlands (NL)
0e0e9958-80d6-482a-8055-460523312d48 Estonia (EE)
a07c0a98-7547-4cfe-acaa-ac743f533e50 Greece (GR)
e64abfa8-47e1-4b4b-92d4-df79dff3f877 Portugal (PT)
Ordering
Order Code US and CanadaXT3SE4250AFF000XXX
E-Number (Sweden)3182426
EAN8015644021382
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height150 mm
Product Net Depth / Length70 mm
Product Net Weight2.1 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width155 mm
Package Level 1 Height190 mm
Package Level 1 Depth / Length155 mm
Package Level 1 Gross Weight2.18 kg
Package Level 1 EAN8015644021382
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 85..192 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 17.8 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)250 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)2500 A
Rated Insulation Voltage (Ui)800 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 27 kA
(415 V AC) 36 kA
(440 V AC) 20 kA
(500 V AC) 15 kA
(525 V AC) 10 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 27 kA
(500 V DC) 3 Poles in Series 37.5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 6 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)250 A
Recommended Screw DriverMain Circuit M8
ReleaseTMD
Release TypeTM
Setting Range175...250 A
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT3
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque8 N·m
VersionF
CAD Dimensional Drawing1SDH001295R0483
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5530
GL Certificate1SDL000163R0094
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000720R0100
Mechanical Drawings1SDH000720R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000720R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
