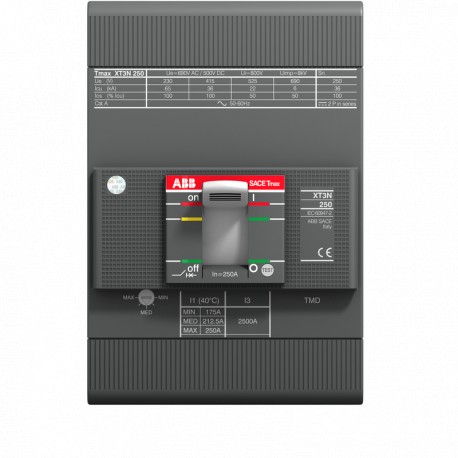

1SDA068221R1 ABB XT3S 250 TMD 250-2500 3p F F
1SDA068221R1
068221
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built by Abb, the 1SDA068221R1 ABB XT3S 250 TMD 250-2500 3p F F is a molded case circuit breaker designed to automatically interrupt high fault currents in electrical distribution networks. Switchboards and control panels rely on these devices to protect conductors and connected machinery from thermal overloads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 56.6 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2350
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108468A2294
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: fe1eb3d5-8c63-44e3-bb9c-10a9d49206e0 Italy (IT)
- Simplified SCIP: 47dd9d46-ad17-4e38-9b7c-13c562f18678 Germany (DE)
- Order Code US and Canada: XT3SE3250AFF000XXX
- E-Number (Finland): 3641020
- E-Number (Sweden): 3182436
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 56.6 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2350 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108468A2294 |
| 9AKK108468A7794 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | fe1eb3d5-8c63-44e3-bb9c-10a9d49206e0 Italy (IT) |
| Simplified SCIP | 47dd9d46-ad17-4e38-9b7c-13c562f18678 Germany (DE) |
| 395af62d-3166-4330-85a8-57f13e3c4cd6 Czech Republic (CZ) | |
| a87e088c-bfca-4bca-bd82-2e3996b21c8d Portugal (PT) | |
| bf0b7bc2-795b-4a18-97b5-d0d8f5a7acdc Bulgaria (BG) | |
| 3e4f51cf-72a5-492e-be25-a7d2dd6ff282 Sweden (SE) | |
| 69f60869-d4b2-4daa-9fd5-36d197f51f10 Poland (PL) | |
| 0d7c7b1b-a443-4df0-a06f-7af825c37f11 Poland (PL) | |
| a6b4a186-2c57-4b75-9f4d-9eaccfd9b7b0 Netherlands (NL) | |
| 6fb29b1b-0ca7-4e33-a44c-024aabc4956d Netherlands (NL) | |
| b78f8949-00db-4428-b91c-0646514f9dcc Estonia (EE) | |
| 675b8a00-d9a4-4f9a-bf6a-dc94fba0328e Greece (GR) | |
| fa62de05-56c7-44bc-a54e-9f790f893580 France (FR) | |
| f5455b37-8cfa-43a9-8b42-d5f752252d31 Sweden (SE) | |
| e06e5780-042d-4a05-8556-540e6750fb61 Germany (DE) | |
| 40296efb-f1d5-4dd8-b88a-4f2a333352a8 Germany (DE) | |
| 43c357e0-c904-4461-a29a-3201d177fc76 France (FR) | |
| 7af40e2c-a3e3-41bb-a8d9-1bec85a0444f Netherlands (NL) | |
| a9044156-da7f-49a2-9254-b458c64e50af Spain (ES) | |
| bf63fa76-4f5c-4a04-aeda-6f6a7da8d9d9 Netherlands (NL) | |
| f3d1d321-20ae-4580-92e0-be2d07fb2753 Poland (PL) | |
| 0cdbbb9a-2229-4d94-b659-4674ff269e38 Norway (NO) | |
| d0cc30b8-ea6d-49d7-9945-8ca15b360ca5 Finland (FI) | |
| 553e89f6-94d8-4d6e-a8bd-a6515c266c0f Netherlands (NL) | |
| 01a99f56-8375-449a-bef4-a2a245564d95 Germany (DE) | |
| f8a5a84b-dc9b-4dab-ac2b-3d255af93191 Denmark (DK) | |
| ca7d45d8-fe72-41ce-af50-92639318b638 Germany (DE) | |
| 9f1b92ef-6563-4865-afb4-37f962d0b9ca Croatia (HR) | |
| Ordering | |
| Order Code US and Canada | XT3SE3250AFF000XXX |
| E-Number (Finland) | 3641020 |
| E-Number (Sweden) | 3182436 |
| EAN | 8015644021276 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 155 mm |
| Package Level 1 Height | 190 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Gross Weight | 1.71 kg |
| Package Level 1 EAN | 8015644021276 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 85..192 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 17.8 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 250 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 2500 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (240 V AC) 50 kA | |
| (380 V AC) 27 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 20 kA | |
| (500 V AC) 15 kA | |
| (525 V AC) 10 kA | |
| (690 V AC) 3 kA | |
| (250 V DC) 2 Poles in Series 27 kA | |
| (500 V DC) 3 Poles in Series 37.5 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 40 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 6 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Recommended Screw Driver | Main Circuit M8 |
| Release | TMD |
| Release Type | TM |
| RoHS Date | NA |
| Setting Range | 175...250 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT3 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 8 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0409 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5530 |
| GL Certificate | 1SDL000163R0094 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000720R0100 |
| Mechanical Drawings | 1SDH000720R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000720R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
