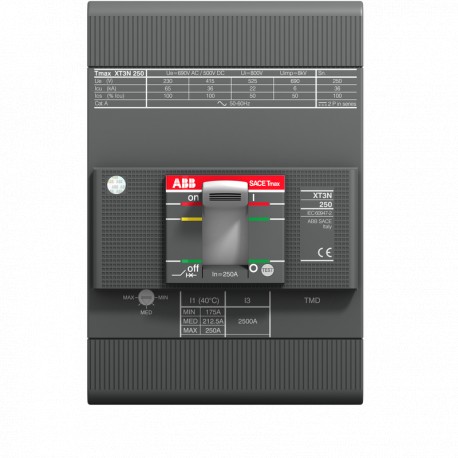

1SDA068220R1 ABB XT3S 250 TMD 200-2000 3p F F
1SDA068220R1
068220
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SDA068220R1 is a molded case circuit breaker designed to safeguard low-voltage electrical circuits against overloads and short circuits. Industrial panel builders use these protective devices to interrupt fault currents automatically, protecting equipment and allowing safe manual isolation for system servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 56.6 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2350
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108468A2294
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: d8122831-ef02-4136-a308-0ca35e4debc5 Italy (IT)
- Simplified SCIP: e48a5218-0ce9-4667-8818-8cf839a18154 Germany (DE)
- Order Code US and Canada: XT3SE3200AFF000XXX
- E-Number (Finland): 3641019
- EAN: 8015644021269
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 56.6 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2350 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108468A2294 |
| 9AKK108468A7794 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d8122831-ef02-4136-a308-0ca35e4debc5 Italy (IT) |
| Simplified SCIP | e48a5218-0ce9-4667-8818-8cf839a18154 Germany (DE) |
| a5cfc034-ff32-4da3-a1e0-ae34b787720b Czech Republic (CZ) | |
| 84a0e6c1-a659-4e4d-8938-ce4bab634d23 Poland (PL) | |
| 4032aa7c-fa89-44a3-9cdd-1e3f05541095 Netherlands (NL) | |
| b53576df-99cc-4638-a303-28f81665f6c8 Netherlands (NL) | |
| 3409c441-b5e4-4d4e-a671-837f877c4ec4 Estonia (EE) | |
| 9dc6f330-f0e3-4e0e-ad5e-6daf21374176 Greece (GR) | |
| 9294771f-6555-4dc6-8106-e9e9f0d74ae1 Portugal (PT) | |
| b02f56c3-1702-4f25-9f05-23010c00667c Bulgaria (BG) | |
| 7c176d9b-5bfa-4ae4-8f7b-b483948fb74c Sweden (SE) | |
| e9e18279-8f22-4ebe-a9ab-b2d29d25840b Poland (PL) | |
| bb59b0af-96db-4749-ae05-a5e1fbec0393 France (FR) | |
| 4333ea09-1e7c-40e1-a851-f904604b7c13 Sweden (SE) | |
| 111e81b2-3136-44b3-87e7-ee30207a824f Germany (DE) | |
| 4600d34c-2fef-40e0-91f5-196317e081b9 Germany (DE) | |
| 0c24a0f5-7cd3-4455-a0ad-ba79931cffea France (FR) | |
| 60dc0153-dd00-4f40-8e31-f7ecdbb24e1d Netherlands (NL) | |
| ea1efb97-1a87-47e2-bf08-dc600504b2a3 Spain (ES) | |
| 091c08a1-8479-41dd-b9bd-d6bef75fa10d Netherlands (NL) | |
| 8a940e67-73b4-49bb-891c-833065fc4952 Poland (PL) | |
| 54d343ad-284b-410f-ac9d-cf1092249324 Norway (NO) | |
| caac0c8f-6a68-47f9-bd16-6d765ed31fa5 Finland (FI) | |
| aa8eaabb-ab1a-49c4-9c01-3de17195f8f6 Netherlands (NL) | |
| f87b85a3-aa7a-4f78-acb3-2544eb3d8310 Germany (DE) | |
| bf0d6edc-520f-418a-a347-8d1885f5f663 Denmark (DK) | |
| b503dbc1-46ce-4cb7-b252-1931887f4bbc Germany (DE) | |
| ef86ee0b-c013-4020-9178-b7e95ff540bb Croatia (HR) | |
| Ordering | |
| Order Code US and Canada | XT3SE3200AFF000XXX |
| E-Number (Finland) | 3641019 |
| EAN | 8015644021269 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 155 mm |
| Package Level 1 Height | 190 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Gross Weight | 1.724 kg |
| Package Level 1 EAN | 8015644021269 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 85..192 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 13.2 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Leistungsschalter |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 200 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 2000 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (240 V AC) 50 kA | |
| (380 V AC) 27 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 20 kA | |
| (500 V AC) 15 kA | |
| (525 V AC) 10 kA | |
| (690 V AC) 3 kA | |
| (250 V DC) 2 Poles in Series 27 kA | |
| (500 V DC) 3 Poles in Series 37.5 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 40 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 6 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Recommended Screw Driver | Main Circuit M8 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 140...200 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT3 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 8 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0409 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5530 |
| GL Certificate | 1SDL000163R0094 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000720R0100 |
| Mechanical Drawings | 1SDH000720R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000720R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
